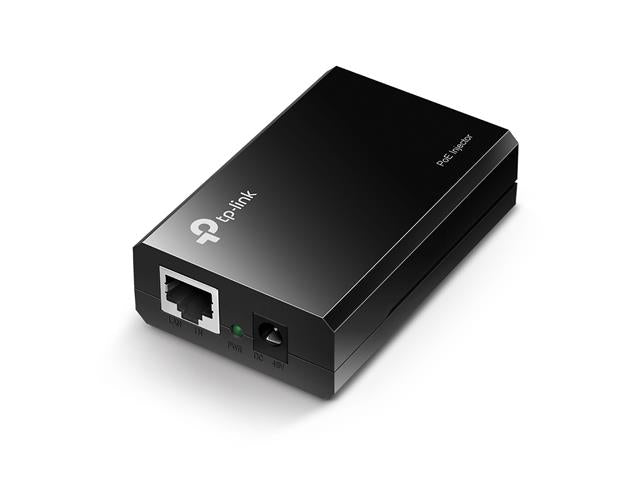

TP-LINK’s PoE Injector TL-POE150S fully complies with IEEE 802.3af standard. No need to buy a PoE switch, you can use the existing non-PoE switch or non-PoE router to connect PoE devices with the help of TL-POE150S.

The PoE Injector TL-POE150S can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent products, to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cam- eras or IP Phones, etc.

• Complies with IEEE802.3af standard
• Delivers power and data over the single cable up to 100 meters
• Cost Saving, no power cabling for Ethernet network device
• Advanced Auto-Sensing Algorithm enables providing power with 802.3af PD
• Supports power classication,Auto-determine the necessary power requirements
• High Safety with Short Circuit Protection
• Plug & Play installation, requires no conguration
• External 48VDC power supply

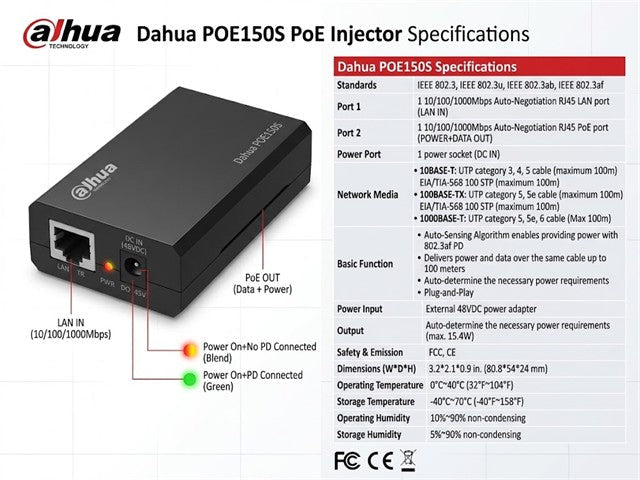

• Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
• Port
  • 1 10/100/1000Mbps Auto-Negotiation RJ45 LAN port (LAN IN)
  • 1 10/100/1000Mbps Auto-Negotiation RJ45 PoE port (POWER+DATA OUT)
  • 1 power socket (DC IN)
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
• Basic Function
  • Auto-Sensing Algorithm enables providing power with 802.3af PD
  • Delivers power and data over the same cable up to 100 meters
  • Auto-determine the necessary power requirements
  • Plug-and-Play
• Power
  • Input: External 48VDC power adapter
  • Output: Auto-determine the necessary power requirements (max. 15.4W)
• LED Indicator : Power On+No PD Connected(Blend color of red and yellow), Power On+PD
• Connected(green)
• Safety & Emission : FCC, CE
• Dimensions (W*D*H) : 3.2*2.1*0.9 in.(80.8*54*24 mm)
• Operating Temperature : 0°C~40°C (32°F~104°F)
• Storage Temperature : -40°C~70°C (-40°F~158°F)
• Operating Humidity : 10%~90% non-condensing
• Storage Humidity : 5%~90% non-condensing

1. Datasheet - TP-LINK POE150S
