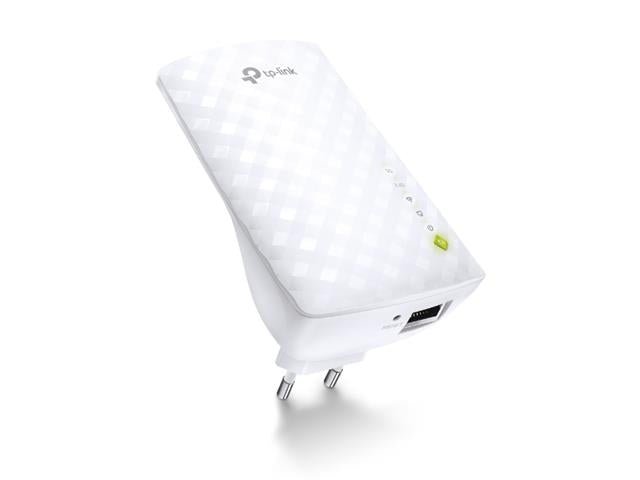

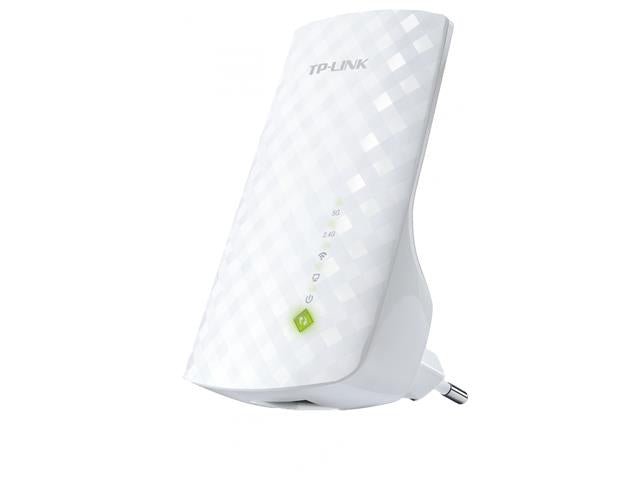

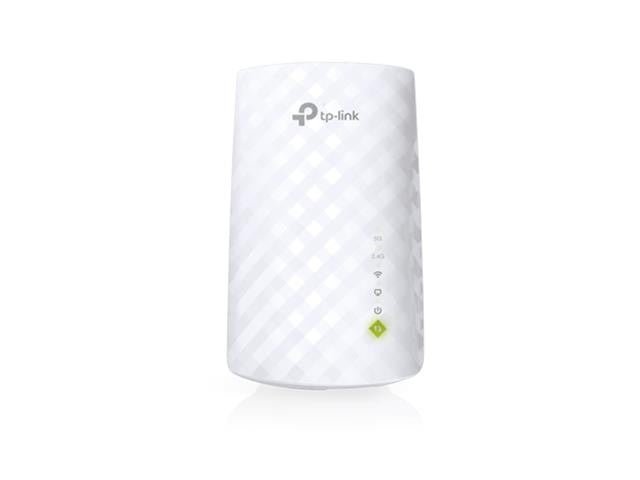

TP-LINK RE200 (AC750) WiFi Range Extender 1x10/100M Ethernet Port (RJ45), 300Mbps, 6.5W, FREQ: 2.4GHz & 5GHz, Wireless Modes : Range Extender, 20 dBm (EIRP), WPA-PSK / WPA2-PSK, US Plug

WiFi Range Extender


Ease of Use

    • Intuitive Web UI– Ensures quick and simple installation without hassle.
    • Fast Encryption – One-touch WPA wireless security encryption with the WPS button
    • Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android or iOS device
    • Online Upgrade – Keeps you informed of the latest firmware and allows onling updating on the web UI


    • Ultimate Wireless Speed – Combined wireless speeds of up to 300Mbps (over 2.4GHz) and 433Mbps (over 5GHz)
    • Support 802.11 ac – Provides a data transfer rate 3 times faster than 802.11n for each stream
    • MIPS 24KEc CPU – A 575/580 MHz MIPS 24KTM CPU core makes multi-tasking easy and boosts data transfer rate


  • Simultaneous Dual Band – Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance
  • Reliable Connection – Three Internal antennas for optimal Wi-Fi coverage and reliable wireless connections

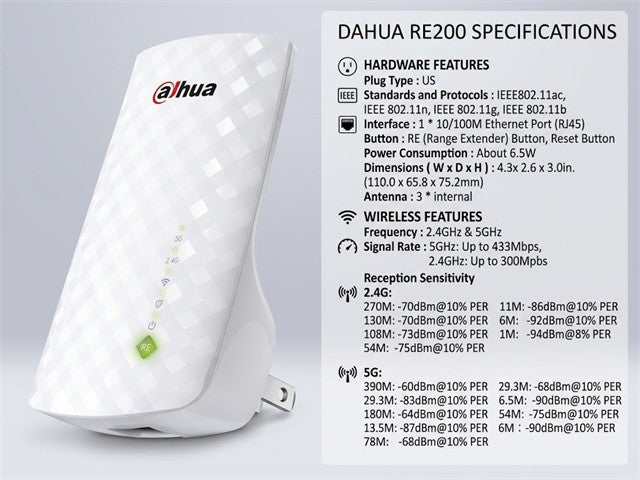

    • Plug Type : US
    • Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    • Interface : 1 * 10/100M Ethernet Port (RJ45)
    • Button : RE (Range Extender) Button, Reset Button
    • Power Consumption : About 6.5W
    • Dimensions ( W x D x H ) : 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
    • Antenna : 3 * internal

Wireless Features

    • Frequency : 2.4GHz & 5GHz
    • Signal Rate : 5GHz:Up to 433Mbps, 2.4GHz:Up to 300Mpbs

Reception Sensitivity

  • 2.4G:
    • 270M: -70dBm@10% PER
    • 130M: -70dBm@10% PER
    • 108M: -73dBm@10% PER
    • 54M: -75dBm@10% PER
    • 11M: -86dBm@8% PER
    • 6M: -92dBm@10% PER
    • 1M: -94dBm@8% PER
  • 5G:
    • 390M: -60dBm@10% PER
    • 29.3M: -83dBm@10% PER
    • 180M: -64dBm@10% PER
    • 13.5M: -87dBm@10% PER
    • 78M: -68dBm@10% PER
    • 6.5M: -90dBm@10% PER
    • 54M: -75dBm@10% PER
    • 6M:-90dBm@10% PER


Additional Information

Device Extender
Type WiFi | Range
