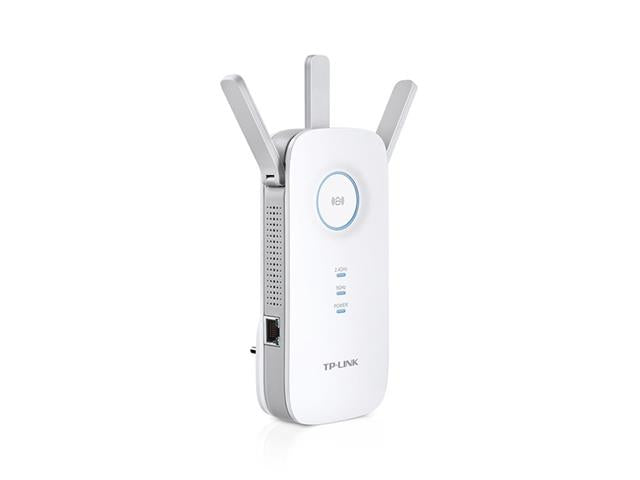

WIFI Range Extender (AC1750) 1x10/100/1000M Ethernet Port (RJ45), 10W, 3 x External Antennas, FREQ: 2.4GHz & 5GHz(11ac), Wireless Modes : 2.4G/5G Wi-Fi Band, WPA-PSK / WPA2-PSK, (202x125x86mm)
WIFI Range Extender (AC1750)

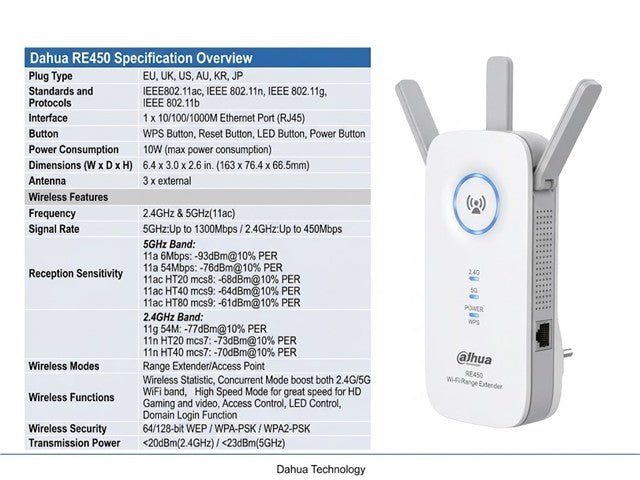

Specifications
Hardware Features
Plug Type : EU, UK, US, AU, KR, JP
Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface : 1 x 10/100/1000M Ethernet Port (RJ45)
Button : WPS Button, Reset Button, LED Button, Power Button
Power Consumption : 10W (max power consumption)
Dimensions ( W x D x H ) : 6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)
Antenna : 3 x external
Wireless Features
Frequency : 2.4GHz & 5GHz(11ac)
Signal Rate : 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mpbs
Reception Sensitivity :
l5GHz :
- 11a 6Mbps:-93dBm@10% PER
- 11a 54Mbps: -76dBm@10% PER
- 11ac HT20 mcs8: -68dBm@10% PER
- 11ac HT40 mcs9: -64dBm@10% PER
- 11ac HT80 mcs9: -61dBm@10% PER
2.4GHz
- 11g 54M: -77dBm@10% PER
- 11n HT20 mcs7: -73dBm@10% PER
- 11n HT40 mcs7: -70dBm@10% PER
Wireless Modes : Range Extender/Access Point
Wireless Functions :
- Wireless Statistic
- Concurrent Mode boost both 2.4G/5G WiFi band
- High Speed Mode for great speed for HD Gaming and video
- Access Control
- LED Control
- Domain Login Function
Wireless Security : 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power :
- <20dBm(2.4GHz)
- <23dBm(5GHz)
Others
Certification : CE, FCC, RoHS
Package Contents : AC1750 Wi-Fi Range Extender RE450
Quick Installation Guide
Box Dimensions (W X D X H) : 7.9 x 4.9 x 3.4in. (202x 125 x 86mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment :
- Operating Temperature: 0°C~30°C (32°F~86°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Downloads
Additional Information
| Device |
Range Extender |
| Type |
WIFI | AC1750 |
| References |
- Maximum Coverage - Extend Wi-Fi coverage by up to 1,115 m2 (12,000sq. ft)
- AC1750 Dual Band Wi-Fi - Simultaneous 450Mbps on 2.4GHz + 1300Mbps on 5GHz
- Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
- Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
- Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
- AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point
|
