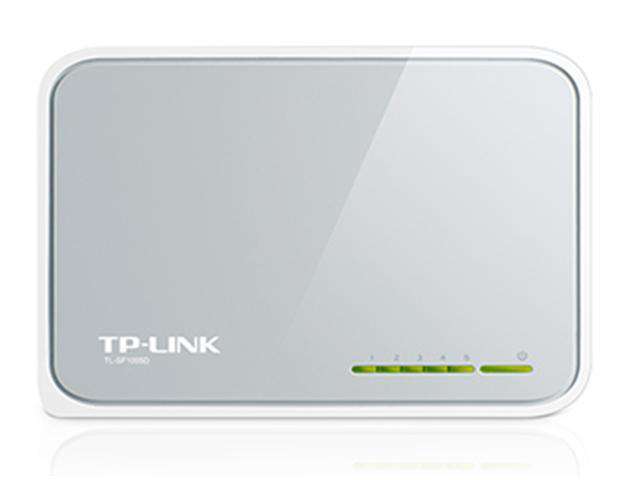

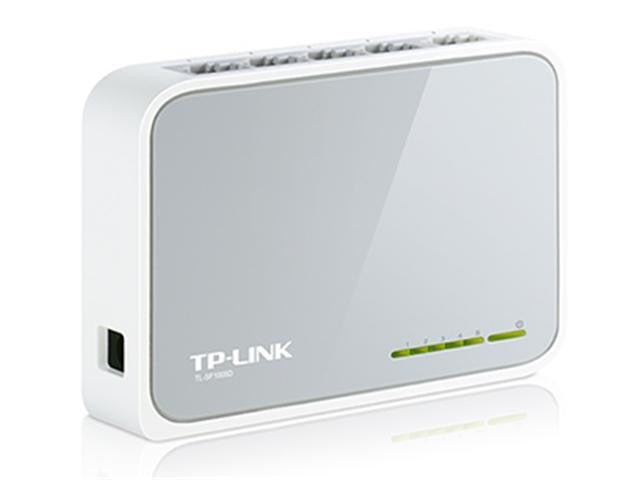

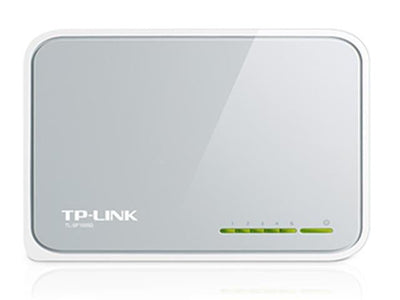

TP-LINK SF1005D

SKU: TP-LINK SF1005D

BRAND: TP-Link

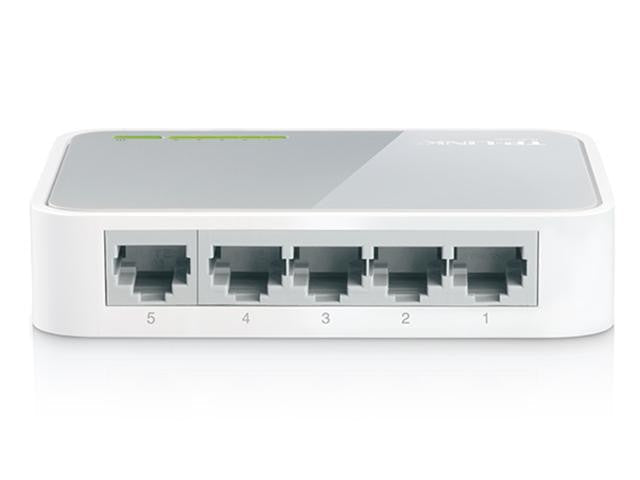

Tp-Link 5 PORT 10/100Mbps Desktop Switch, Plug & Play, Auto NegotiatioN RJ45 Ports, Supports MDI/MDIX

Overview

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Features

  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves the power up to 60%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

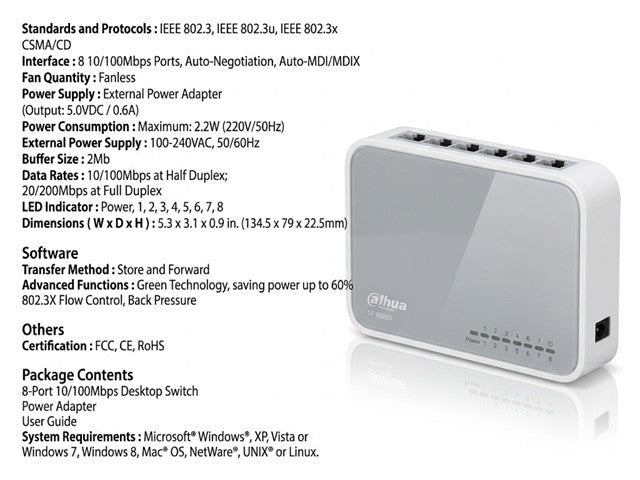

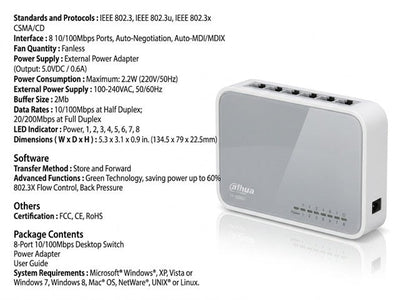

Specification

Hardware

  • Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
  • Interface : 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  • Fan Quantity : Fanless
  • Power Supply : External Power Adapter(Output: 5.0VDC / 0.6A)
  • Power Consumption : Maximum: 2.2W (220V/50Hz)
  • External Power Supply : 100-240VAC, 50/60Hz
  • Buffer Size : 2Mb
  • Data Rates : 10/100Mbps at Half Duplex; 20/200Mbps at Full Duplex
  • LED Indicator : Power, 1, 2, 3, 4, 5, 6, 7, 8
  • Dimensions ( W x D x H ) : 5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)

Software

  • Transfer Method : Store and Forward
  • Advanced Functions : Green Technology, saving power up to 60% 802.3X Flow Control, Back Pressure

Others

  • Certification : FCC, CE, RoHS

Package Contents

  • 8-Port 10/100Mbps Desktop Switch
  • Power Adapter
  • User Guide
  • System Requirements : Microsoft® Windows®, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux.

Environment

  • Operating Temperature : 0°C~40°C (32°F~104°F);
  • Storage Temperature : -40°C~70°C (-40°F~158°F);
  • Operating Humidity : 10%~90% non-condensing;
  • Storage Humidity : 5%~90% non-condensing
