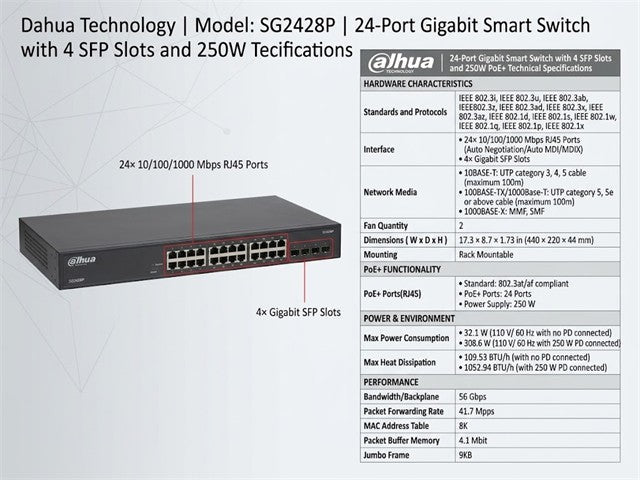

| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |
• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| • 4× Gigabit SFP Slots |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| • 1000BASE-X: MMF, SMF |
| Fan Quantity |
2 |
| PoE+ Ports(RJ45) |
• Standard: 802.3at/af compliant |
| • PoE+ Ports: 24 Ports |
| • Power Supply: 250 W |
| Dimensions ( W x D x H ) |
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |

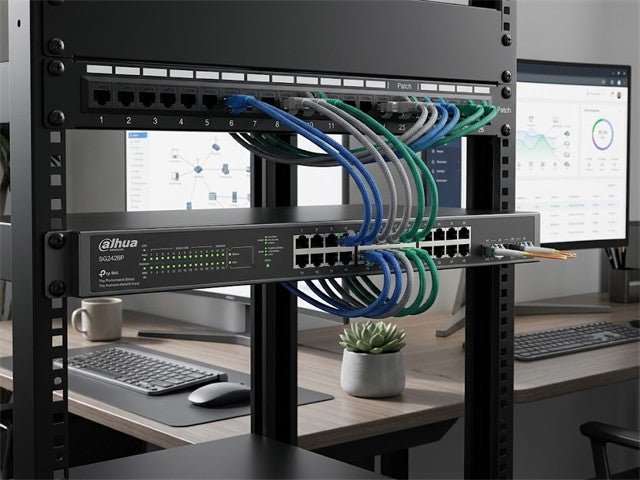

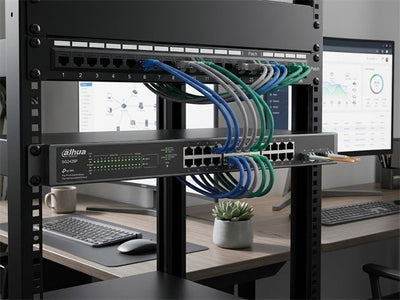

| Mounting |
Rack Mountable |
| Max Power Consumption |
• 32.1 W (110 V/ 60 Hz with no PD connected) |
| • 308.6 W (110 V/ 60 Hz with 250 W PD connected) |
| Max Heat Dissipation |
109.53 BTU/h (with no PD connected) |
| • 1052.94 BTU/h (with 250 W PD connected) |
| PERFORMANCE |
| Bandwidth/Backplane |
56 Gbps |
| Packet Forwarding Rate |
41.7 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9KB |
| SOFTWARE FEATURES |
| Quality of Service |
• Support 802.1p CoS/DSCP priority |
| • Support 8 priority queues |
| • Queue scheduling: SP, WRR, SP+WRR |
| • Port/Flow- based Rate Limiting |
| • IPv6 QoS |
| • Voice VLAN |
| L2 and L2+ Features |
• Static Routing |
| • DHCP Relay |
| • DHCP Server |
| • IGMP Snooping V1/V2/V3 |
| • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) |
| • Spanning Tree STP/RSTP/MSTP |
| • BPDU Filtering/Guard |
| • TC/Root Protect |
| • Loopback detection |
| • 802.3x Flow Control |
| • LLDP, LLDP-MED |
| VLAN |
• Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
| • MAC/Protocol-based VLAN |
| Access Control List |
• L2–L4 package filtering |
| • MAC ACL |
| • IP ACL |
| • Combined ACL |
| • IPv6 ACL |
| Security |
• AAA |
| • Port Security |
| • DHCP Snooping |
| • IP-MAC-Port Binding |
| • IPv6-MAC-Port Binding |
| • ARP Inspection |
| • 802.1x and Radius Authentication |
| • SSH v1/v2 |
| • SSL v3/TLSv1.2 |
| • Broadcast/Multicast/Unknown-unicast Storm Control |
| • Dos Defend |
| IPv6 |
• Dual IPv4/IPv6 stack |
| • Multicast Listener Discovery (MLD) Snooping |
| • IPv6 neighbor discovery (ND) |
| • Path maximum transmission unit (MTU) discovery |
| • Internet Control Message Protocol (ICMP) version 6 |
| • TCPv6/UDPv6 |
| IPv6 Applications |
• DHCPv6 Client |
| • Ping6 |
| • Tracert6 |
| • Telnet (v6) |
| • IPv6 SNMP |
| • IPv6 SSH |
| • IPv6 SSL |
| • Http/Https |
| • IPv6 TFTP |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) |
| • Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
• Web-based GUI and CLI management |
| • SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs |
| • RMON (1, 2, 3, 9 groups) |
| • CPU Monitoring |
| • Port Mirroring |
| • Firmware Upgrade: TFTP & Web |
| • System Diagnose: VCT |
| • SYSLOG & Public MIBS |
| • Dual Image |
| • EEE |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-SG2428P |
| • Power Cord |
| • Installation Guide |
| • Rackmount Kit |
| • Rubber Feet |
| System Requirements |
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
• Operating Temperature: 0–50 ℃ (32–122 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity: 10–90% RH non-condensing |
| • Storage Humidity: 5–90% RH non-condensing |
