BRAND: Tycon Power

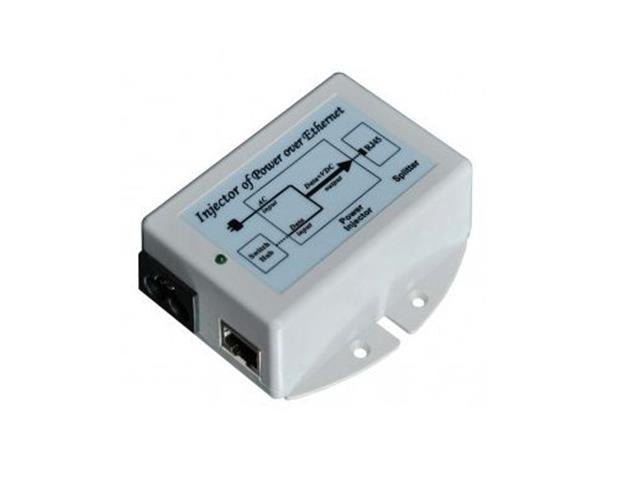

Industrial Gigabit PoE Inserter. 90-264VAC input. 24V 19W Output 10/100/1000Mb Compatible


The TP-POE-24 Gigabit Power Over Ethernet Power Source/Inserter offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
The POE inserters have built in Ethernet surge protection which eliminates the need for a standalone Ethernet surge protector.
The TP-POE-24 are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 24VDC at the output. They have various protections for surge, short circuit and overload.
Output is 24VDC with load regulation within 5%


  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Autoranging Switching Power Supply
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
  • Compact size
  • Floor / Desktop / Wall Mount
  • CE/FCC/UL/CB Approved


  • AC Input: 90-264VAC 47-63Hz
  • Max Inrush Current: 30A
  • Efficiency: 85%
  • Line / Load Regulation: 1% / 5%
  • Ripple / Noise: 1% / 2%
  • Protections: Over Voltage, Short Circuit, Over-Current
  • Surge Protection:
    • Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us) Peak Pulse Current,
    • AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us)
  • EMC Standards: FCC Class B EN55022 Class B
  • Safety Standards: UL1950, CSA 22.2 & TUV EN60950
  • Environmental Standards: RoHS
  • Operating Temperature: -30 to 60C (-22 to 140F)
  • Operating Humidity: 5% - 90%
  • Storage Temperature: -40 to 80C (-40 to 176F)
  • PoE Output Voltage: 24V
  • Output Current: 0.8A
  • Output Power: 19W
  • PoE Type: Passive
  • Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4")
  • Weight: 150g (5.3oz)
