USR DR404 DIN RAIL RS485-WIFI

SKU: USR DR404 DIN RAIL RS485-WIFI

BRAND: Usr IoT


Industrial CAN to Ethernet Converter. Data Communication Between CAN and Network Server. Two CAN Ports and One Ethernet Port, TCP/IP Protocol, Extend the CAN Network. Transfers Among Three Networks: CAN to Ethernet, CAN to RS485, Ethernet to RS485

Industrial CAN to Ethernet Converter

Specifications

Ethernet

Port Number

1 Ethernet Ports: 1 x WAN/LAN

Buffer

RX/TX: Max 4K bytes

Protection

2KV Electromagnetic isolation for Ethernet port

Speed Rate

10/100Mbps, MDI/MDIX

Wi-Fi

Certificate

FCC/CE

WiFi

802.11 b/g/n

FrequencyRange

2.412GHz-2.484GHz

TransmitPower

802.11b: +19dBm(Max.@11Mbps)

802.11g: +18dBm(Max.@54Mbps)

802.11n: +17dBm(Max.@HT20,MCS7)

                 +17dBm(Max.@HT40,MCS7)

User can configure power

ReceiveSensitivity

802.11b: -89dBm(@11Mbps)

802.11g: -81dBm(@54Mbps)

802.11n: -73dBm(@HT20,MCS7)

         -71dBm(@HT40,MCS7)

Hardware

InterfaceStandard

RS485:300~230.4Kbps

485 interface (anti surge, anti thunder, overcurrent protection)

Input Voltage

DC5~36V

Operating Temp

-40℃~85℃

StorageTemp

-40℃~125℃

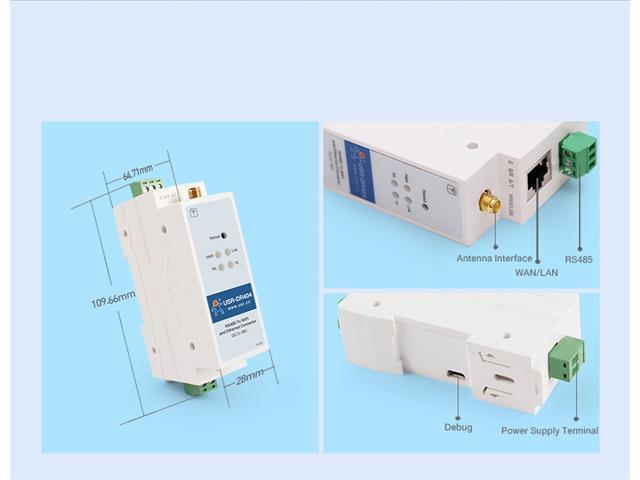

Size

109.66*28*64.71mm(L*W*H)

Software

Network Mode

Station/AP/AP+Station

Security

WPA-PSK/WPA2-PSK

Encryption

TKIP/AES

Work Mode

Transparent transmission/Serial command/

https Client/Modbus TCP<=>Modbus RTU

SettingCommand

AT+ command

Networking Protocol

TCP/UDP/ARP/ICMP/DHCP/DNS/https

Max Client Numberin TCP Server Mode

24

Configuration

Web server+AT command

Customer application software

Support customize application software

Downloads

Additional Information

Device Converter
Type Industrial | CAN to Ethernet
