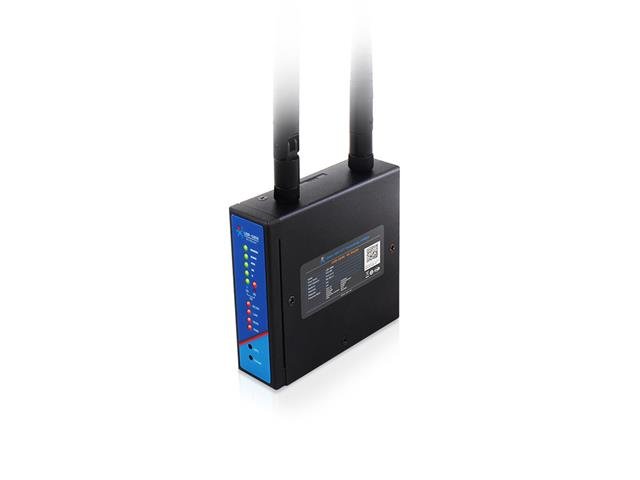

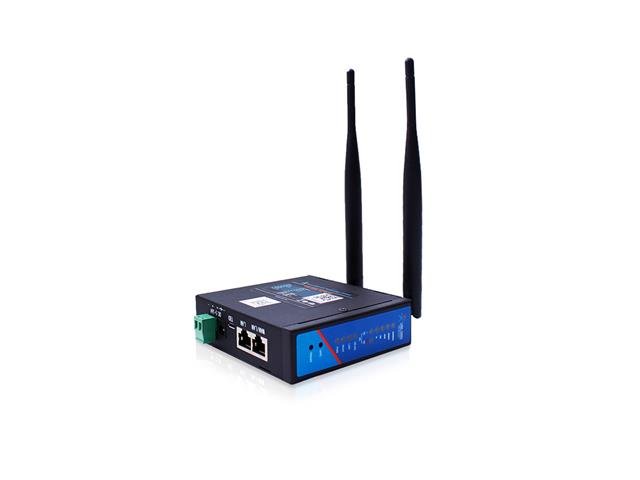

USR G806-E 4G LTE VPN+APN ROUTER

SKU: USR G806-E 4G LTE VPN+APN ROUTER

BRAND: Usr IoT


An Industrial 4G Wireless LTE Router which provides a solution for users to connect their own device to 4G network via Wi-Fi Interface or Ethernet Interface

4G Wireless LTE Router

Overview

The USR-G806-E is an industrial 4G LTE router supports WAN, LAN, WLAN and 4G interface. User can access to 3G/4G network by WLAN interface or Ethernet interface.

The wireless 4G LTE Router adopts industrial high-performance and embedded structure, and it is widely used in industrial control, smart electricity, personal health care, smart home to transmit data.

Features

  • 4G LTE Industrial Routers, secure wireless routing for industrial remote access
  • Providing reliable, seamless connectivity for M2M & IoT applications
  • Support PPTP L2TP IPSEC OPENVPN GRE
  • Support 2 10/100Base-T(X) self-adaptive Ethernet interface

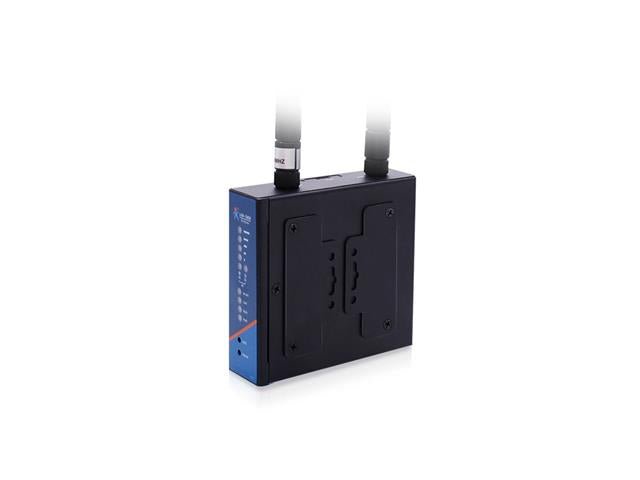

  • Hardware watchdog, rugged metal casing and Din-Rail mounting
  • Support 802.11 b/g/n WLAN
  • Industrial router with sim card

Specifications

  • Interface: Mini PCI-E 52PIN
  • TD-LTE: 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
  • FDD-LTE: 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
  • WCDMA: HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps
  • TD-SCDMA: 3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps
  • GSM/GPRS/EDGE: Download rate of 384 kbps; upload rate of 128 kbps
  • Working Temperature: -20°C ~ +70°C
  • Net Weight: 600g

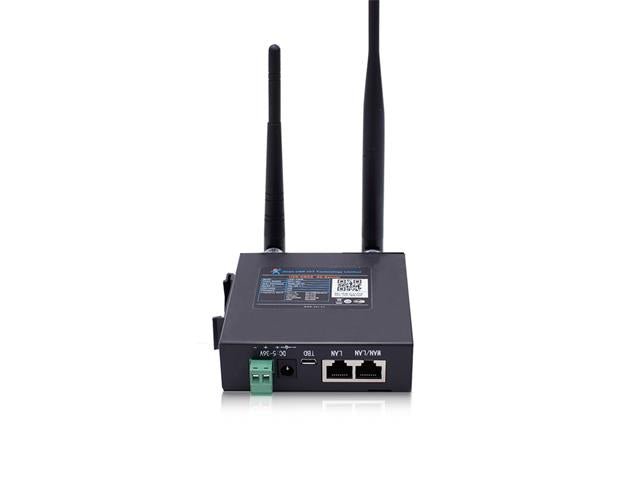

Ethernet Port

  • WAN port: 1 x WAN (rate of 10/100Mbps, Auto MDI/MDIX)
  • LAN port: 1 x LAN (rate of 10/100Mbps,Auto MDI/MDIX)

WiFi

  • WIFI Network: Support 802.11b/g/n
  • Antenna: 1 x WIFI antenna

Frequency Band

  • TDD-LTE: Band 38/39/40/41
  • FDD-LTE: Band 1/3/5/7/8/20
  • WCDMA: Band 1/5/8
  • GSM/GPRS/EDGE: Band 1/8

SIM Card & Antenna

  • SIM/USIM Card: Standard 6 pin SIM card, 3V/1.8V SIM card
  • Antenna: 1 x 3/4G full-frequency antenna

Downloads

Additional Information

Device Router
Type 4G | Wireless | LTE
