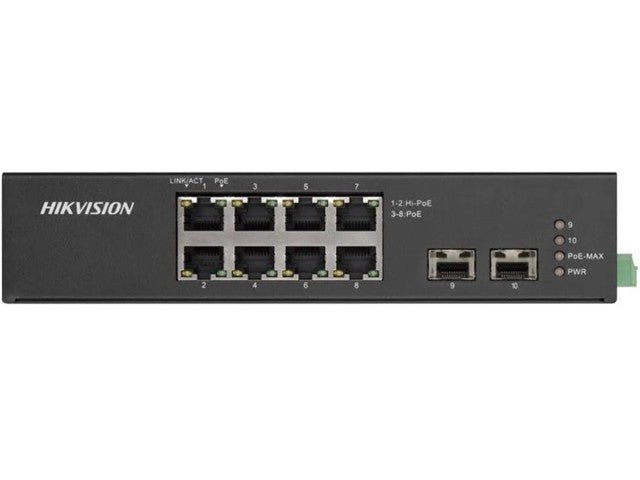

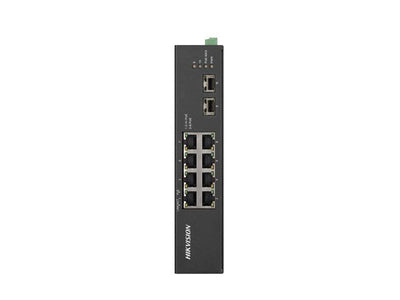

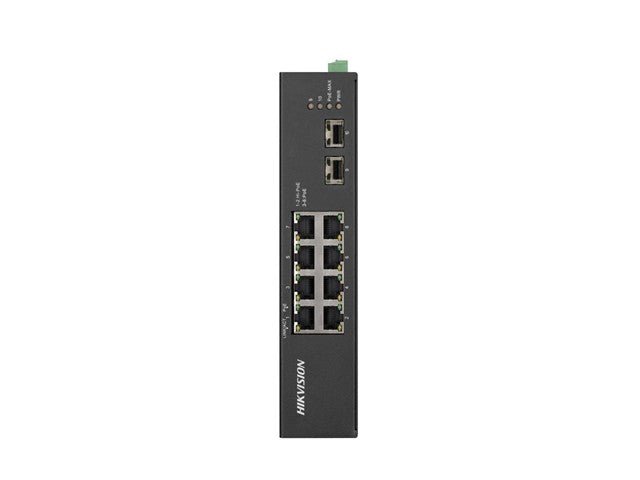

Hikvision 8 Port Gigabit Unmanaged Harsh POE Switch, 8×Gigabit PoE Port, 2×Gigabit Fiber Optical Port, 6kV Surge Protection for PoE ports, Switching Capacity:20Gbps, Ports 7~8:Up to 300m, Wire-Speed Forwarding, Temp:-30 °C to 65 °C, 54VDC 2.5A
8 Port Gigabit Unmanaged Harsh POE Switch
Features
- 6 × Gigabit PoE RJ45 ports, 2 × Gigabit Hi-PoE RJ45 ports, and 2 × Gigabit SFP fiber optical ports
- Hi-PoE ports support IEEE 802.3at/af/bt (max. 90 W PoE output)
- PoE ports support IEEE 802.3at/af (max. 30 W PoE output)
- Complies with IEEE 802.3, 802.3u, 802.3x, 802.3z, and 802.3ab standards
- 6 kV surge protection for PoE ports
- Up to 300 m long-range transmission
- PoE watchdog automatically detects and restarts unresponsive cameras
- Port isolation for improved network security
- Wire-speed forwarding performance
- Wide operating temperature: −30 °C to 65 °C
- Store-and-forward switching mode
- Solid high-strength metal hou

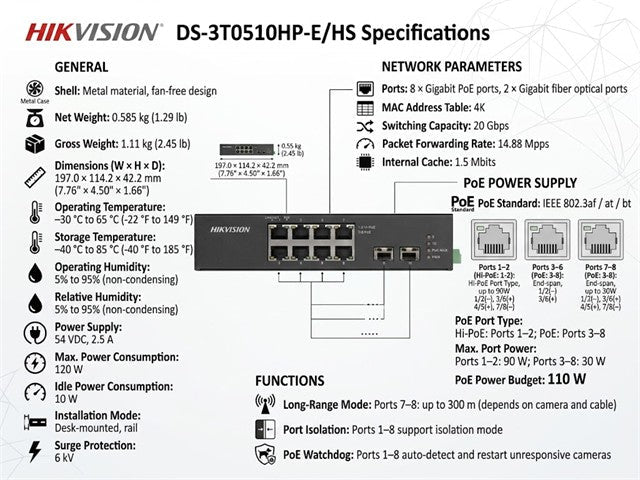

Specifications
| Shell |
Metal material, fan-free design |
| Net Weight |
0.585 kg (1.29 lb) |
| Gross Weight |
1.11 kg (2.45 lb) |
| Dimensions (W × H × D) |
197.0 × 114.2 × 42.2 mm (7.76" × 4.50" × 1.66") |
| Operating Temperature |
−30 °C to 65 °C (−22 °F to 149 °F) |
| Storage Temperature |
−40 °C to 85 °C (−40 °F to 185 °F) |
| Operating Humidity |
5% to 95% (non-condensing) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Power Supply |
54 VDC, 2.5 A |
| Max. Power Consumption |
120 W |
| Idle Power Consumption |
10 W |
| Installation Mode |
Desk-mounted, rail |
| Surge Protection |
6 kV |
Network Parameters
| Ports |
8 × Gigabit PoE ports, 2 × Gigabit fiber optical ports |
| MAC Address Table |
4K |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| Internal Cache |
1.5 Mbits |
PoE Power Supply
| PoE Standard |
IEEE 802.3af / at / bt |
| PoE Power Pin |
Ports 1–2: 1/2(−), 3/6(+), 4/5(+), 7/8(−)
Ports 3–6: End-span: 1/2(−), 3/6(+)
Ports 7–8: 1/2(−), 3/6(+), 4/5(+), 7/8(−) |
| PoE Port Type |
Hi-PoE: Ports 1–2
PoE: Ports 3–8 |
| Max. Port Power |
Ports 1–2: 90 W
Ports 3–8: 30 W |
| PoE Power Budget |
110 W |
Functions
| Long-Range Mode |
Ports 7–8: up to 300 m (depends on camera and cable) |
| Port Isolation |
Ports 1–8 support isolation mode |
| PoE Watchdog |
Ports 1–8 auto-detect and restart unresponsive cameras |
Approvals
| EMC |
FCC Part 15, CE-EMC, IC, RCM |
| Safety |
UL 60950-1, CB IEC 62368-1, CE-LVD |
| Chemistry |
CE-RoHS (2011/65/EU) |
Downloads
Additional Information
| Device |
Switch |
| Type |
8 Port | Gigabit | Unmanaged | Harsh | POE |
