USR TCP232-302 SERIAL-ETHERNET - INDUSTRIAL IoT Wi-fi SOLUTIONS -

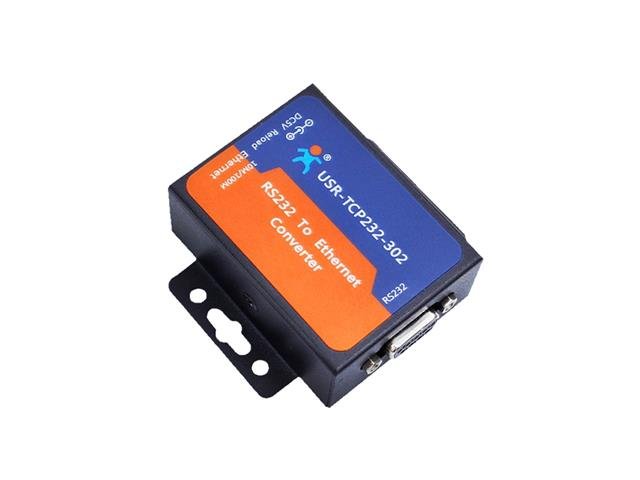

USR TCP232-302 SERIAL-ETHERNET

Name: USR TCP232-302 SERIAL-ETHERNET - Communica [Part No: USR TCP232-302 SERIAL-ETHERNET]
Brand: UsrIoT
SKU: USR TCP232-302 SERIAL-ETHERNET
Price: 510 ZAR
Availability: InStock

SKU: USR TCP232-302 SERIAL-ETHERNET

BRAND: UsrIoT

In Stock
R 586.50_{(inc VAT)}
R 510.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: 1 Port RS232 to Ethernet Converter

1 Port RS232 to Ethernet Converter USR-TCP232-302, Which can transmit data transparently between TCP/IP and RS232. RS232 to IP Converter USR-TCP232-302 is used in Industrial Automation

1 Port RS232 to Ethernet Converter

Features

Single RS232 to ethernet converters
Low-cost Solution
RS232 port
Power supply: DC 4.75-7V
Compact, Light Weight
Supports TCP server/client, UDP server/client
Virtual COM

Specifications

Categories	Cellular & Network Communication
Manufacturer/Brand	USR IOT
Series	USR-TCP232
Ethernet ports	1
Ethernet Protocols	10/100 Mbps
Comm. Method	Ethernet, Serial
Comm. Protocol	ARP, DHCP, DNS, HTTP, ICMP, IP, TCP, UDP
Supply Voltage	4.75~7 Vdc
Operating Temperature	-25° to 75°C, -13° to 167°F
Width (in)	2.80
Depth (in)	2.36
Height (in)	0.97
Width (mm)	71.00
Depth (mm)	71.00
Height (mm)	71.00
Weight (kg)	0.200
Weight (lbs)	0.44
Safety	CE, FCC, RoHS

Downloads

Additional Information

Device	Converter
Type	1 Port RS232 to Ethernet
