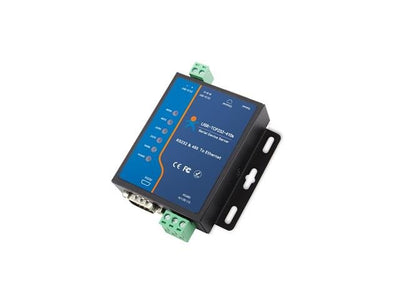

USR TCP232-410S SERIAL-ETHERNET

SKU: USR TCP232-410S SERIAL-ETHERNET

BRAND: Usr IoT


An Industrial SeriaL to Ethernet Converter, Also known as Serial to Ethernet Server or Serial Device Server, Which can realize Bidirectional Transparent Transmission between RS232/RS485/RS422 and Ethernet. Configuration via Web-Page or Software

SeriaL to Ethernet Converter

Overview

The USR Industrial Serial to Ethernet is used for data bidirectional transparent transmission from serial to Ethernet. User doesn't need to consider details because protocol conversion is made within the server. The serial side is serial data and the Ethernet side is TCP/IP data packet, which works through simple configuration on built-in webpage or setting software.

Features

  • 1 RS232 and 1 RS485 Modbus to Ethernet converters
  • 1 RS232 and 1 RS485 Modbus Serial to Ethernet Converters
  • Power supply accepts wide voltage input range DC 5-36V
  • Support TCP server/client, UDP server/client,https client, Virtual COM
  • Support Modbus RTU to Modbus TCP
  • Support flow control CTS/RTS, XON/XOFF
  • Support 1 RS-232,1 RS-485 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
  • Configuration via Web Server page, AT commands, and Windows Utility

Specifications

  • Processor: Cortex-M4
  • Basic Frequency: 120MHz
  • Flash: 512K byte
  • Operating Temperature: -40 ~ 85°C
  • Storage Temperature: -45 ~ 105°C, 5 ~ 95% RH
  • Input Voltage: 5 ~ 36VDC
  • Working Current: 86.5mA(aver)@ 5V, 44.3mA(aver)@ 12V
  • Power: <1W
  • Weight: 436g

Ethernet

  • Port Number: 1

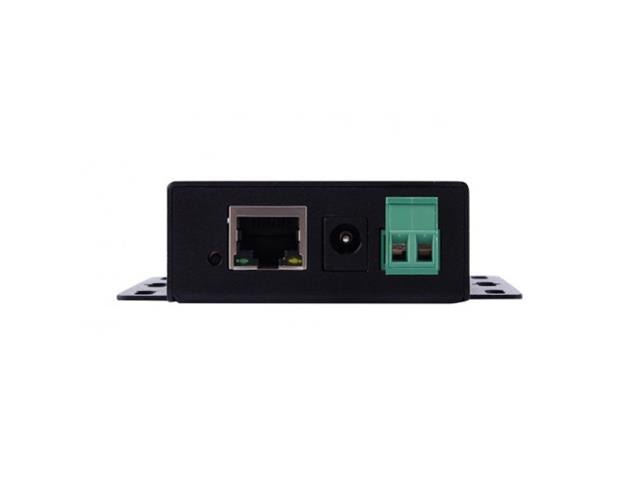

  • Interface Standard: RJ45
  • Rate: 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection
  • Protection: 2KV electromagnetism isolation, shell insulation blocking
  • Network Protocol: IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Web socket, httpsd client
  • Receive Buffer: Max 16k bytes buffer

Serial

  • Port Number: 2 (1*RS-232, 1*RS-485, can work at the same time)

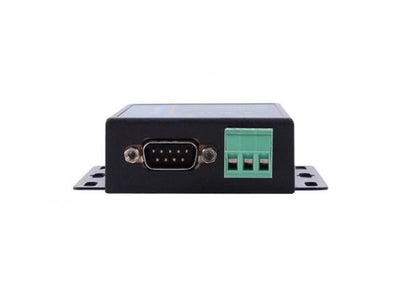

  • Interface Standard: RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G)
  • Data Bits: 5, 6, 7, 8
  • Stop Bit: 1, 2
  • Check Bit: None, Even, Odd, Space, Mark
  • Baud Rate: RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps
  • Flow Control: RTS/CTS
  • Buffer: Send and receive 2k bytes respectively
  • Protection: RS-485: anti-static 2KV, lightning protection
  • RS-485 Pull-up and Pull-Down Resistor: 2.2 KΩ

Downloads

Additional Information

Device Converter
Type SeriaL to Ethernet
