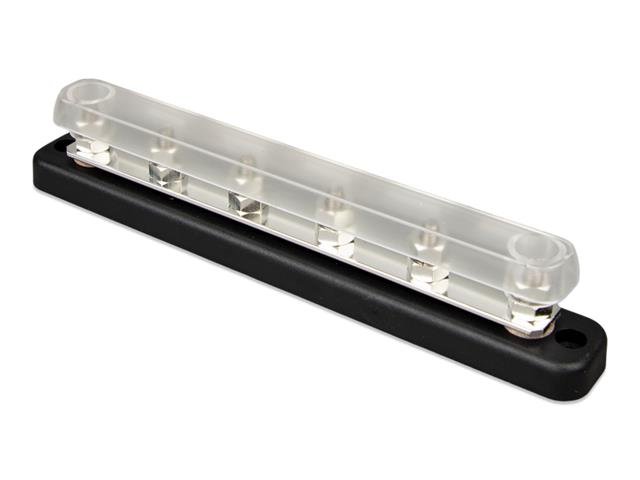

VICT BUSBAR 150A 6P+COVER

Name: VICT BUSBAR 150A 6P+COVER - Communica [Part No: VICT BUSBAR 150A 6P+COVER]
Brand: Victron
SKU: VICT BUSBAR 150A 6P+COVER
Price: 405 ZAR
Availability: InStock

SKU: VICT BUSBAR 150A 6P+COVER

BRAND: Victron

In Stock
R 465.75_{(inc VAT)}
R 405.00_{(ex VAT)}

Collections: Loadshedding

Type: Solar

Category: Loadshedding, Solar Accessories

Victron Busbar 150A 6Pole + Cover, Max Voltage:70VDC, Stainless Steel, Terminal Diameter: ¼ inch / 6.35mm, Recommended Torque:60 lbf·inch /7 N·m, 45x231.7x31.8 mm

Busbar 150A 6Pole + Cover

Specifications

Busbar 150 A with cover
Max. current : 150 A
Max. Voltage : 70 VDC
Terminal diameter : 1⁄4 inch / 6.35 mm
Terminal height : 0.67 inch / 17 mm
Terminal material : Stainless steel
Hex nut material : Tin-plated copper
Recommended torque : 60 lbf·inch / 7 N·m
Busbar strip material : Tin-plated copper (1.4 x 18 mm)
Base material : ABS, black, UL 94 V-0
Cover material : Clear Polycarbonate, UL 94 HB
Weight : 0.6 lb / 0.27 kg
Dimensions (hxwxd) (with cover) : 1.8 x 9.1 x 1.25 inch 45 x 231.7 x 31.8 mm

Downloads

Datasheet - VICT BUSBAR 150A 6P+COVER

Additional Information

Device	Busbar
Type	150A \| 6Pole + Cover
