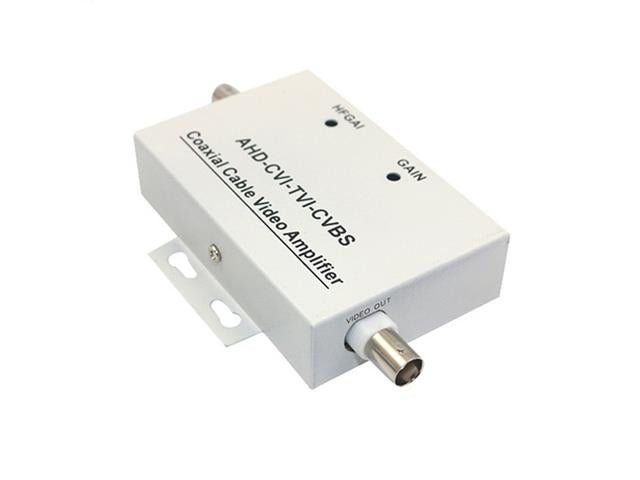

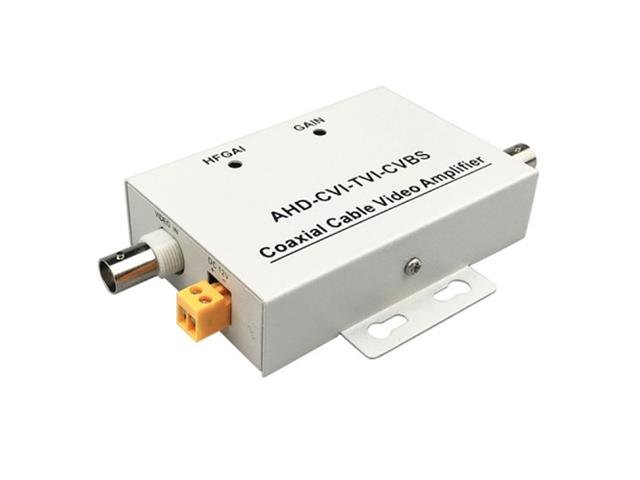

VIDEO SIGNAL AMPLIFIER T1

SKU: VIDEO SIGNAL AMPLIFIER T1

BRAND: Communica


Video Signal BNC I/O, Used for Video Signal Remote Cable Transmission Amplification/Balancing

Video Signal BNC I/O

Overview

Can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distorter, and compatible with white / black and color video

Feature(s)

  • Video signal BNC I/O, used for video signal remote cable transmission amplification/balancing
  • A circuit consisting of an independent isolated supplementary three-stage tube pair outputs signals to 75 ohm loads, with color black and white compatibility and flat frequency response.
  • Input voltage: DC12V input/output impedance: 75 ohms
  • Input connector: One BNC Output connector: one BNC
  • Frequency response: adjustable to compensate and amplify coaxial cable distortion
  • Bandwidth (-3 dB):10 Hz to 7.5 MHz. Gain: adjustable, maximum output before trimming 6 dB: 2.5Vp-p.
  • Operating environment: temperature -10°C--+45°C, relative humidity below 90%.

Specifications

  • Input voltage: DC12V
  • Input / output load: 75ohm
  • Input connector: 1BNC
  • Output connector: 1BNC
  • Frequency response: adjustable
  • Bandwidth(-3db): 10Hz to 7.5MHz
  • Gain: adjustable and max up to 6dB
  • Max output video voltage: 2.5V
  • Temperature: -10 to 45C
  • Humidity: max up to 90%
