WVS LUCKFOX PICO LINUX DEV BOARD - Development / Microcontroller Boards -

WVS LUCKFOX PICO LINUX DEV BOARD

Name: WVS LUCKFOX PICO LINUX DEV BOARD - Communica [Part No: WVS LUCKFOX PICO LINUX DEV BOARD]
Brand: Waveshare
SKU: WVS LUCKFOX PICO LINUX DEV BOARD
Price: 168.70 ZAR
Availability: InStock

SKU: WVS LUCKFOX PICO LINUX DEV BOARD

BRAND: Waveshare

In Stock
R 194.01_{(inc VAT)}
R 168.70_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Development / Microcontroller Boards

Category: Iot, New, Pico Linux Micro Development Board

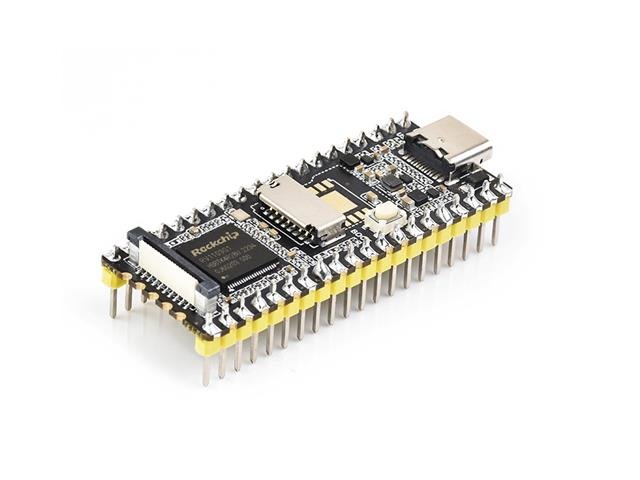

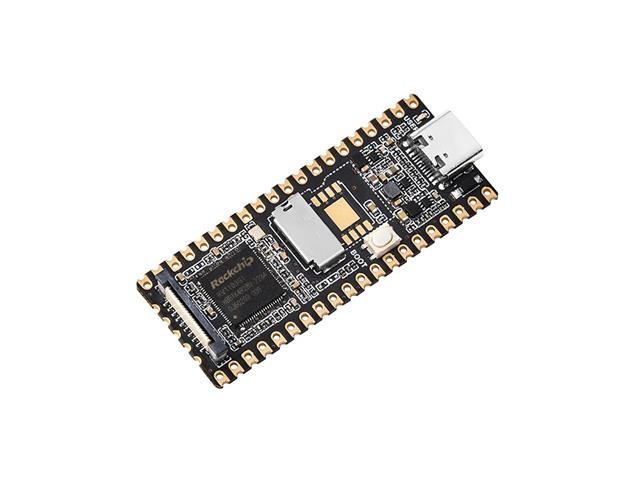

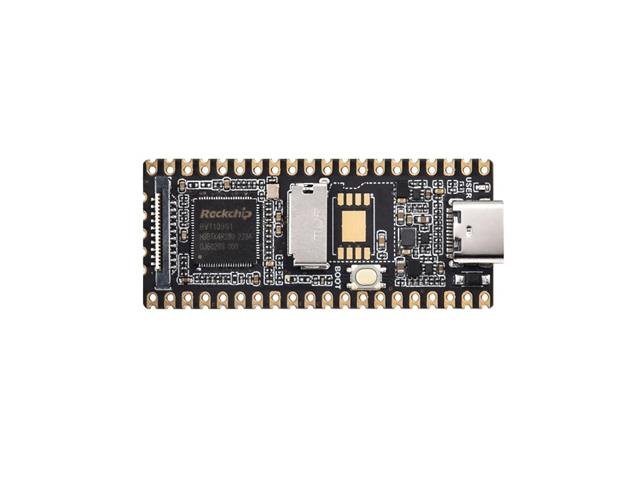

Luckfox Pico RV1103 Linux Micro Development Board, Integrates ARM CORTEX-A7/RISC-V MCU/NPU/ISP Processors. Comes Without Pre-soldered Headers

Luckfox Pico Linux Micro Development Board

Features

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Specifications

Processor	Cortex A7@1.2GHz + RISC-V
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 4M @30fps (Max)
Memory	64MB DDR2
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	24 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	TF card (Not included)

Additional Information

Device	Development Board
Type	Luckfox \| Pico \| RV1103 \| Linux \| Micro
