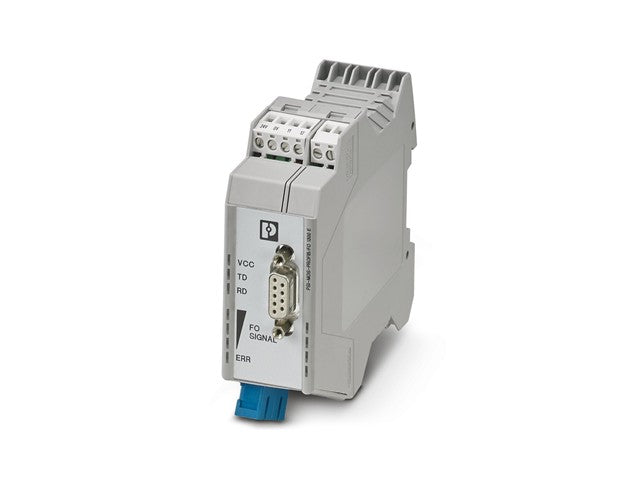

Fiber Optic Converter With Integrated Optical Diagnostics, Alarm Contact, For Profibus Up To 12 Mbps, T-coupler With Two Fiber Optic Interfaces (Sc-duplex), 1300 Nm, For Fiberglass Cable
Fiber Optic Converter

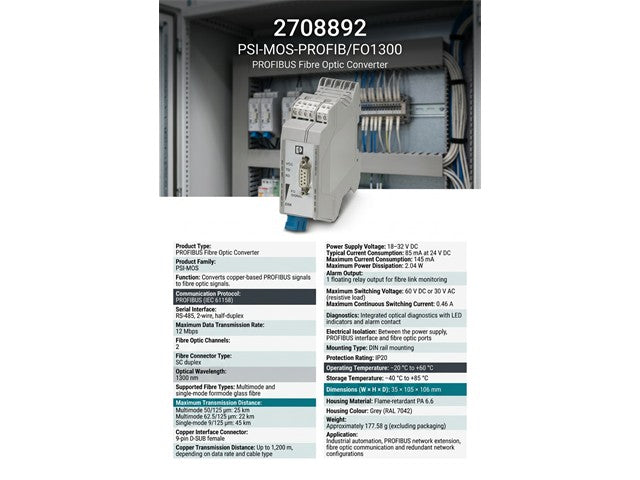

Specifications
Product Type: PROFIBUS Fibre Optic Converter
Product Family: PSI-MOS
Function: Converts copper-based PROFIBUS signals to fibre optic signals.
Communication Protocol: PROFIBUS (IEC 61158)
Serial Interface: RS-485, 2-wire, half-duplex
Maximum Data Transmission Rate: 12 Mbps
Fibre Optic Channels: 2
Fibre Connector Type: SC duplex
Optical Wavelength: 1300 nm
Supported Fibre Types: Multimode and single-mode glass fibre
Maximum Transmission Distance:
Multimode 50/125 µm: 25 km
Multimode 62.5/125 µm: 22 km
Single-mode 9/125 µm: 45 km
Copper Interface Connector: 9-pin D-SUB female
Copper Transmission Distance: Up to 1,200 m, depending on data rate and cable type
Power Supply Voltage: 18–32 V DC
Nominal Supply Voltage: 24 V DC
Typical Current Consumption: 85 mA at 24 V DC
Maximum Current Consumption: 145 mA
Maximum Power Dissipation: 2.04 W
Alarm Output: 1 floating relay output for fibre link monitoring
Maximum Switching Voltage: 60 V DC or 30 V AC (resistive load)
Maximum Continuous Switching Current: 0.46 A
Diagnostics: Integrated optical diagnostics with LED indicators and alarm contact
Electrical Isolation: Between the power supply, PROFIBUS interface and fibre optic ports
Mounting Type: DIN rail mounting
Protection Rating: IP20
Operating Temperature: -20 °C to +60 °C
Storage Temperature: -40 °C to +85 °C
Dimensions (W × H × D): 35 × 105 × 106 mm
Housing Material: Flame-retardant PA 6.6
Housing Colour: Grey (RAL 7042)
Weight: Approximately 177.58 g (excluding packaging)
Application: Industrial automation, PROFIBUS network extension, fibre optic communication and redundant network configurations.

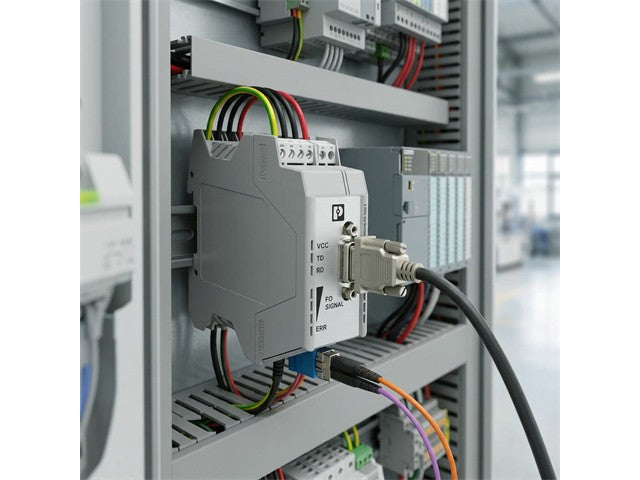

Enhance your industrial automation with the PSI-MOS-PROFIB/FO1300 Fiber Optic Converter. This reliable converter effortlessly transforms copper-based PROFIBUS signals to fiber optic, supporting seamless data transmission up to 12 Mbps over long distances. With integrated diagnostics and alarm contacts, ensure optimal performance and security for your network. Perfect for extending your PROFIBUS network and boosting communication efficiency.
