Sinamics G120xa Variable Frequency Drive, Rated Power 132kw, 3AC 380v (−20%) To 440v (+10%) Input, Unfiltered, 110% Overload For 60s Per 600s, Without Operator Panel, With Integrated Fieldbus

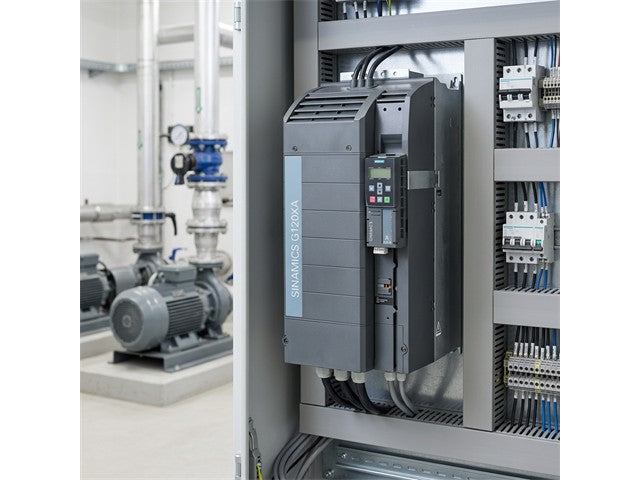

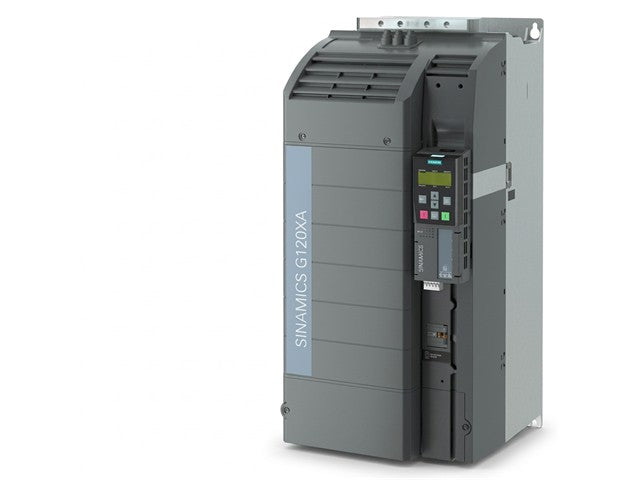

Sinamics G120xa Variable Frequency Drive

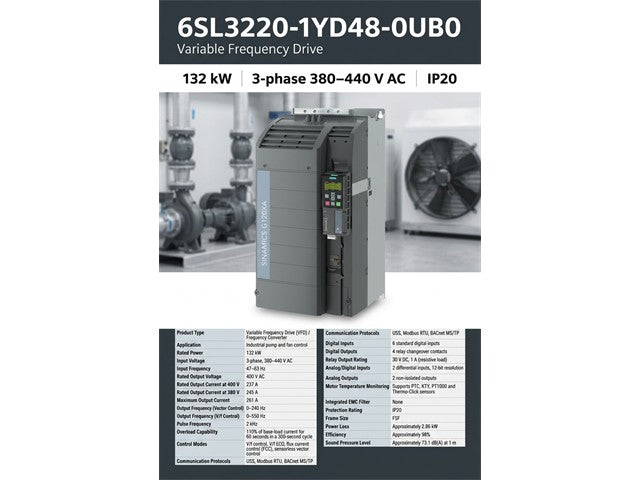

Specifications
- Product Type: Variable Frequency Drive (VFD) / Frequency Converter
- Application: Industrial pump and fan control
- Rated Power: 132 kW
- Input Voltage: 3-phase, 380–440 V AC
- Input Frequency: 47–63 Hz
- Rated Output Voltage: 400 V AC
- Rated Output Current at 400 V: 237 A
- Rated Output Current at 380 V: 245 A
- Maximum Output Current: 261 A
- Output Frequency (Vector Control): 0–240 Hz
- Output Frequency (V/f Control): 0–550 Hz
- Pulse Frequency: 2 kHz
- Overload Capability: 110% of base-load current for 60 seconds in a 300-second cycle
- Control Modes: V/f control, V/f ECO, flux current control (FCC), sensorless vector control
- Communication Protocols: USS, Modbus RTU, BACnet MS/TP
- Digital Inputs: 6 standard digital inputs
- Digital Outputs: 4 relay changeover contacts
- Relay Output Rating: 30 V DC, 1 A (resistive load)
- Analog/Digital Inputs: 2 differential inputs, 12-bit resolution
- Analog Outputs: 2 non-isolated outputs
- Motor Temperature Monitoring: Supports PTC, KTY, PT1000 and Thermo-Click sensors
- Integrated EMC Filter: None
- Protection Rating: IP20
- Frame Size: FSF
- Power Loss: Approximately 2.86 kW
- Efficiency: Approximately 98%
- Sound Pressure Level: Approximately 73.1 dB(A) at 1 m
Downloads
Additional Information
| Device |
Frequency Drive |
| Type |
Sinamics | G120xa | Variable | Frequency | Drive |
Enhance your industrial operations with the Sinamics G120xa Variable Frequency Drive. With a robust 132 kW power rating and versatile control modes, this VFD ensures optimal efficiency and precise control for pumps and fans. Experience reliable performance and a 98% efficiency rating, making it the perfect choice for energy-conscious businesses. Upgrade your system today for unparalleled operational excellence.
