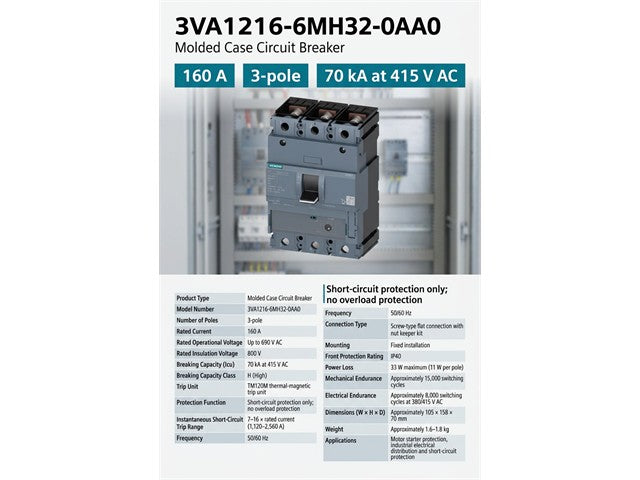

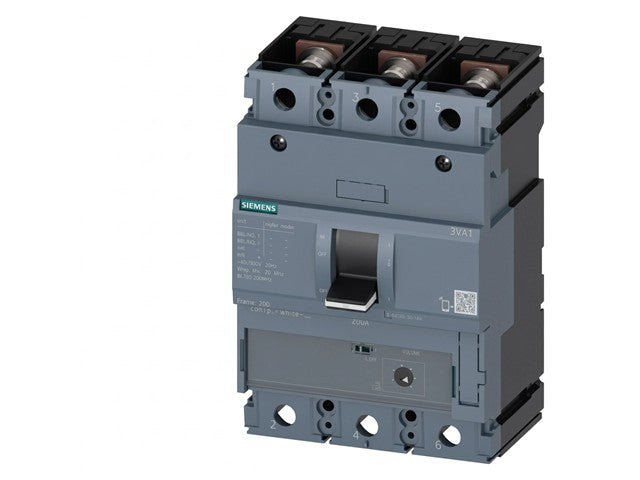

Circuit breaker 3VA1 IEC Frame 250 breaking capacity class H Icu=70 kA @ 415 V 3-pole, starter protection TM120M, AM, In=160 A without overload protection short-circuit protection Ii=7...16 x In nut keeper kit
Circuit breaker 3VA1 IEC Frame
Specifications
Product Type: Molded Case Circuit Breaker
Model Number: 3VA1216-6MH32-0AA0
Number of Poles: 3-pole
Rated Current: 160 A
Rated Operational Voltage: Up to 690 V AC
Rated Insulation Voltage: 800 V
Breaking Capacity (Icu): 70 kA at 415 V AC
Breaking Capacity Class: H (High)
Trip Unit: TM120M thermal-magnetic trip unit
Protection Function: Short-circuit protection only; no overload protection
Instantaneous Short-Circuit Trip Range: 7–16 × rated current (1,120–2,560 A)
Frequency: 50/60 Hz
Connection Type: Screw-type flat connection with nut keeper kit
Mounting: Fixed installation
Front Protection Rating: IP40
Power Loss: 33 W maximum (11 W per pole)
Mechanical Endurance: Approximately 15,000 switching cycles
Electrical Endurance: Approximately 8,000 switching cycles at 380/415 V AC
Dimensions (W × H × D): Approximately 105 × 158 × 70 mm
Weight: Approximately 1.6–1.8 kg
Applications: Motor starter protection, industrial electrical distribution and short-circuit protection.
Ensure reliable protection for your electrical systems with the 3VA1216-6MH32-0AA0 molded case circuit breaker. Designed for motor starter protection and industrial applications, this 3-pole breaker offers a high breaking capacity of 70 kA at 415 V and thermal-magnetic short-circuit protection. Its robust design ensures long-lasting performance, making it an essential component for safe and efficient electrical distribution. Upgrade your safety standards today!
