Overview

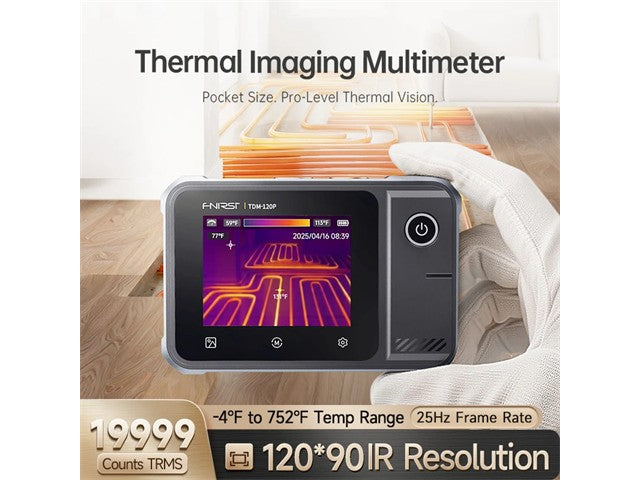

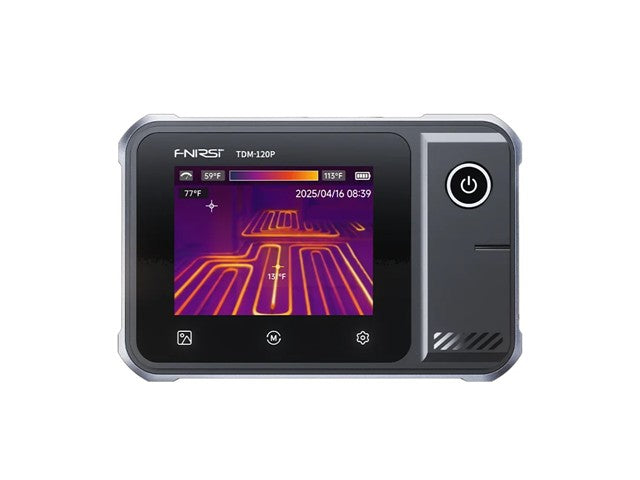

TDM-120P is a thermal imaging multimeter that combines thermal imaging technology with traditional multimeter functions, providing more comprehensive and intuitive test results in electrical testing and related applications. It is widely used in fields such as electricity, industrial manufacturing, construction, and security monitoring. The TDM-120P offers reliable technical support for equipment testing, fault diagnosis, and maintenance management, helping improve production efficiency, product quality, and overall safety.
Features
-

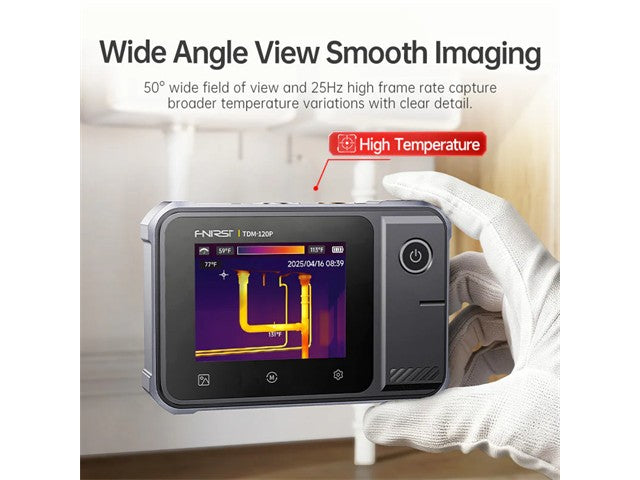

HD Thermal Imaging Module: 120×90 infrared resolution with vanadium oxide detector; 25Hz refresh rate for smooth real-time thermal imaging, capturing temperature anomalies clearly and instantly.
-
Superior Thermal Sensitivity & Adjustability: <60mK thermal sensitivity, paired with 0.01-1 adjustable emissivity and 0.5m-3m measuring distance, ensuring accurate temperature detection in diverse application scenarios.
-

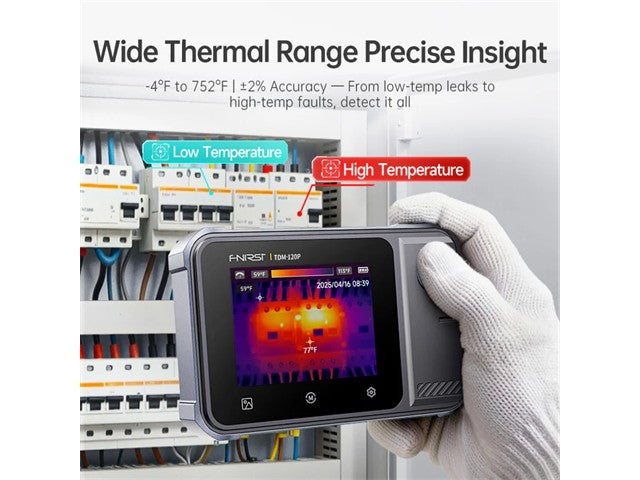

Precise Wide-Range Temperature Measurement: Supports -4℉ to 752℉ (-20℃~400℃) full-range temperature testing with ±2℃ or ±2% (max value) accuracy; equipped with automatic hot/cold spot tracking and high/low temperature alarm for quick fault location.
-

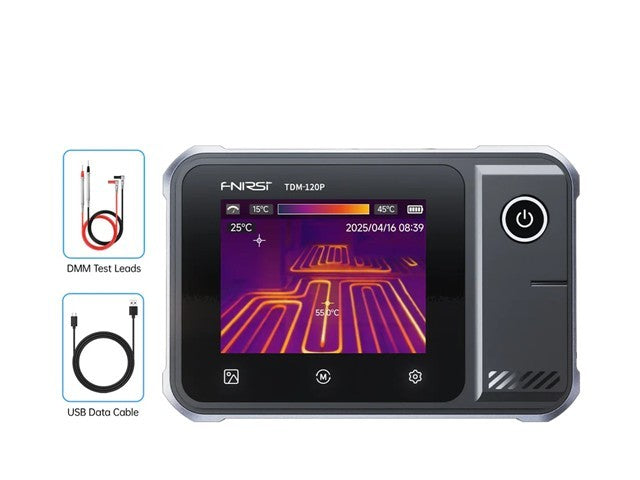

19999-Count True RMS Multimeter with Full Functions: Delivers professional-grade precision for DC voltage (0-1000V, ±0.5%+3) and AC voltage (0-750V, ±1%+3); supports multi-range resistance, capacitance, continuity and diode testing, with data hold function and real-time max/min value display for convenient data recording and analysis.
-

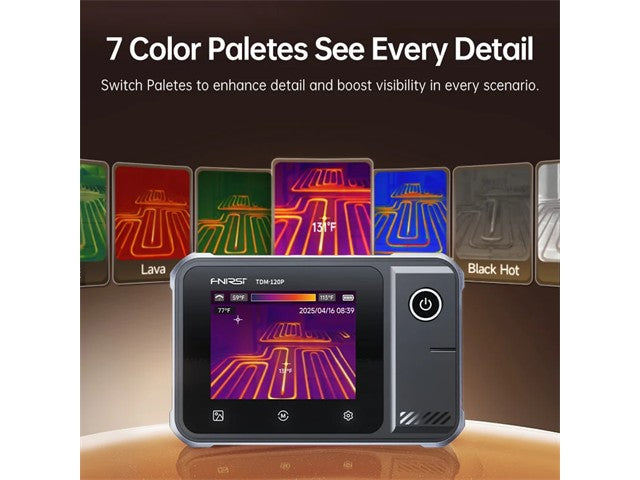

2.8-inch LCD Touch Screen Operation: Responsive LCD touch control with 7 switchable color palettes (Arctic/Hot Iron/Iron Red/Rainbow/Lava/Black Hot/White Hot) for clear visual distinction of temperature differences on thermal images.
-
Flexible Data Storage & Export: One-click thermal image save to plug-and-play SD card; USB one-key export of images and measurement data, facilitating test report sorting and team data sharing.
-
Customizable Smart System Settings: Built-in Simplified Chinese and English language options; adjustable auto power-off (5/10/20min/OFF) and screen brightness, with ℃/℉ temperature unit switch to meet different usage habits.
-
Humanized Temperature Testing Design: Dual cursor measurement (center + floating) for flexible temperature point selection; fixed center temperature display and intelligent high-temperature area tracking for precise testing.
-
Portable & Rechargeable On-Site Design: Compact pocket-sized body for easy carrying during field work; Type-C charging interface for fast and convenient power supply, ideal for long-time outdoor and on-site operations.
-
Multi-Scenario Professional Adaptation: Perfectly suited for HVAC repair, water leakage detection, electrical circuit inspection, air conditioning maintenance, industrial equipment testing and automotive fault diagnosis.
Specifications
| Model |
TDM-120P |
| 7 Color Palette |
Arctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White Hot |
| Detector Type |
Vanadium Oxide |
| Field of View |
50° |
| Screen |
2.8-inch LCD Touchscreen |
| Frame Rate |
≤25 Hz |
| Infrared Resolution |
120 × 90 |
| Temperature Measurement Display |
Center Point, Automatic High/Low Temperature Tracking |
| Temperature Range |
-4°F to 752°F (-20°C to 400°C) |
| Temperature Unit |
°C / °F |
| Accuracy |
±2°C or ±2% (maximum value measured) |
| High/Low Temperature Alarm |
Supported |
| Emissivity |
0.01–1 Adjustable |
| Languages |
Chinese / English |
Multimeter Parameters
| Function |
Range |
Accuracy |
| DC Voltage |
1.9999 V / 19.999 V / 199.99 V / 1000 V |
±(0.5% + 3) |
| AC Voltage |
1.9999 V / 19.999 V / 199.99 V / 750.0 V |
±(1% + 3) |
| Resistance |
19.999 MΩ / 1.9999 MΩ / 199.99 kΩ / 19.999 kΩ |
±(0.5% + 3) |
| Resistance |
1.9999 kΩ / 199.99 Ω |
±(2.0% + 3) |
| Capacitance |
999.9 μF / 99.99 μF / 9.999 μF / 999.9 nF / 99.99 nF / 9.999 nF |
±(2.0% + 5) |
| Capacitance |
9.999 mF / 99.99 mF |
±(5.0% + 20) |
| Diode Test |
Supported |
Yes |
| Continuity Test |
Supported |
Yes |
