CNY75B

Name: CNY75B - Communica [Part No: CNY75B]
Brand: Vishay
SKU: CNY75B
Price: 10 ZAR
Availability: OutOfStock

SKU: CNY75B

BRAND: Vishay

Sold Out
R 11.50_{(inc VAT)}
R 10.00_{(ex VAT)}

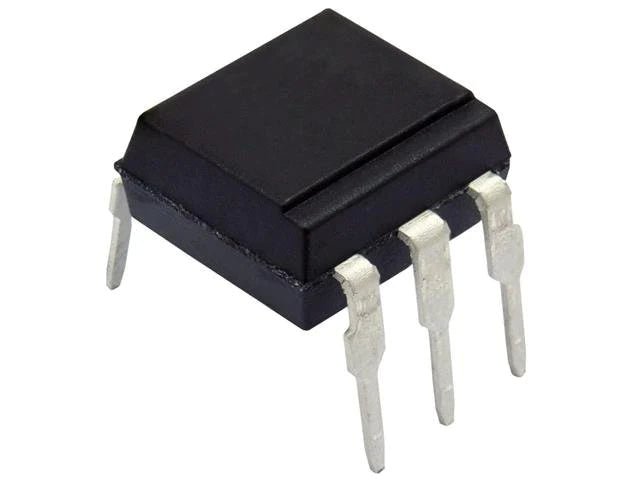

Photocoupler (phototransitor output) - DIP6

Photocoupler Phototransitor Output

Mounting Style:	Through Hole
Package/Case:	PDIP-6
Number of Channels:	1 Channel
Isolation Voltage:	5000 Vrms
Output Type:	NPN Phototransistor
Current Transfer Ratio - Min:	100 %
Current Transfer Ratio - Max:	200 %
If - Forward Current:	60 mA
Vf - Forward Voltage:	1.6 V
Maximum Collector Emitter Voltage:	70 V
Maximum Collector Current:	50 mA
Maximum Collector Emitter Saturation Voltage:	300 mV
Rise Time:	3 us
Fall Time:	3.7 us
Vr - Reverse Voltage:	5 V
Pd - Power Dissipation:	200 mW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 110 C
Series:	CNY
Brand:	Vishay Semiconductors
Configuration:	1 Channel
Current Transfer Ratio:	100 %
Height:	4.2 mm
Length:	8.8 mm
Product Type:	Transistor Output Optocouplers
Subcategory:	Optocouplers
Width:	6.4 mm
Unit Weight:	400 mg

Device	Photocoupler
Type	Phototransitor \| Output
