KB815

Name: KB815 - Communica [Part No: KB815]
Brand: KingBright
SKU: KB815
Price: 9.36 ZAR
Availability: InStock

SKU: KB815

BRAND: KingBright

In Stock
R 10.76_{(inc VAT)}
R 9.36_{(ex VAT)}

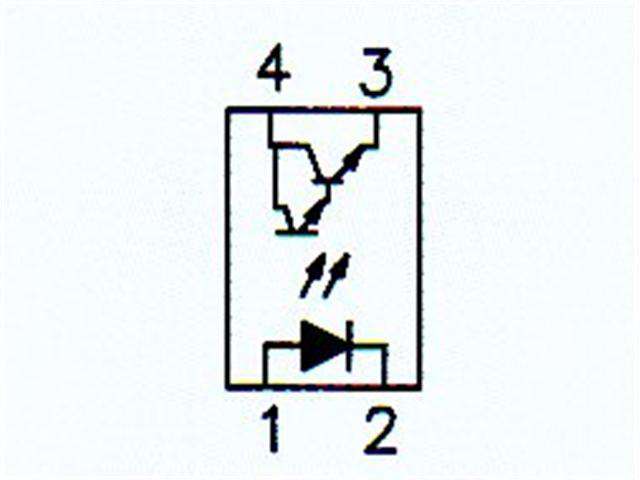

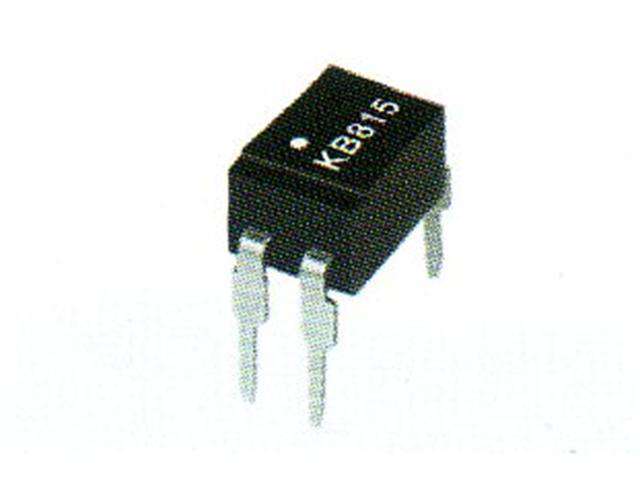

1 Channel Photo Darlington Transistor Opto Isolator • 4 Pin DIP • BVCEO= 35V • VIsol= 5kV

Overview

with AC Input

Attribute	Value
Mounting Type	Through Hole
Output Device	Darlington
Maximum Forward Voltage	1.4V
Number of Channels	1
Number of Pins	4
Package Type	DIP
Input Current Type	DC
Typical Rise Time	60µs
Maximum Input Current	50 mA
Isolation Voltage	5000 V ac
Maximum Current Transfer Ratio	7500%
Typical Fall Time	53µs
