• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• License Plate Recognition
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

Camera

• Image Sensor 1/1.8" Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination
  • Color: 0.0005 Lux @ (F1.2, AGC ON);
  • B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time 1 s to 1/100,000 s
• Day & Night
  • IR cut filter
  • Blue glass module to reduce ghost phenomenon

Lens

Focal Length & FOV : 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV:
49.6° to 17.3°
Focus : Auto, semi-auto, manual
Iris Type : P-iris
Aperture : 8 to 32 mm: F1.7 to F1.73

DORI

• DORI
  • Wide: 8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
  • Tele: 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
• Illuminator
• Supplement Light Type : IR
• Supplement Light Range : 8 to 32 mm: 100 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264,
  • Sub-stream: H.265/H.264/MJPEG,
  • Third stream: H.265/H.264,
  • Fourth stream: H.265/H.264/MJPEG,
  • Fifth stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Scalable Video Coding (SVC) : H.265 and H.264 encoding
• Region of Interest (ROI) : 4 fixed regions for each stream
• Target Cropping : Yes

Audio

• Audio Type : Mono sound
  Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  Environment Noise Filtering : Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
  PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS,
  WebSocket, WebSockets
  Simultaneous Live View : Up to 20 channels
• API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
  authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
  Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log,
  TLS 1.2
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health
  detection are supported
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE8+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Local service: Chrome 41.0+, Firefox 30.0+


• Image Parameters Switch : Yes
• Image Settings : Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch : Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
• Wide Dynamic Range (WDR) 140 dB
• SNR : ≥ 52 dB
• Image Enhancement : BLC, HLC, Defog, 3D DNR
• Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Stabilization : EIS

Interface

• Video Output : 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface : 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio With : -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm : 2 input, 2 outputs (max. 24 VDC, 1 A)
• RS-485 With : -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key : Yes
• Power Output : With -Y: 12 VDC, max. 100 mA
• Wiegand : -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Event

• Basic Event : Motion detection, video tampering alarm, exception (network disconnected, IP
  address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality
  diagnosis, vibration detection
• Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting
  detection, audio exception detection, scene change detection, defocus detection
• Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
  output, trigger recording, trigger capture, audible warning

Deep Learning Function

• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types

Road Traffic and Vehicle Detection

• Blocklist and allowlist: up to 10,000 records
• Support license plate recognition of motorcycles (only in checkpoint scenario)
• Support vehicle attribute detection, including vehicle type, color, brand, etc. (City
• Street mode is recommended.)
• License plate recognition rate ≥98%
• Metadata : Intrusion detection, line crossing detection, region entrance detection, region exiting
  detection, road traffic

General

• Power
  • 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
  • PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Material : Aluminum alloy body
• Dimension
• Without -Y: Ø 144 × 347 mm (Ø 5.7" × 13.7")
• With -Y: Ø 140 × 351 mm (Ø 5.5" × 13.8")
• Package Dimension 405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
• Weight Approx. 1950 g (4.2 lb.)
• With Package Weight Approx. 3070 g (6.7 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
    Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
    Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
    Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
• General Function : Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

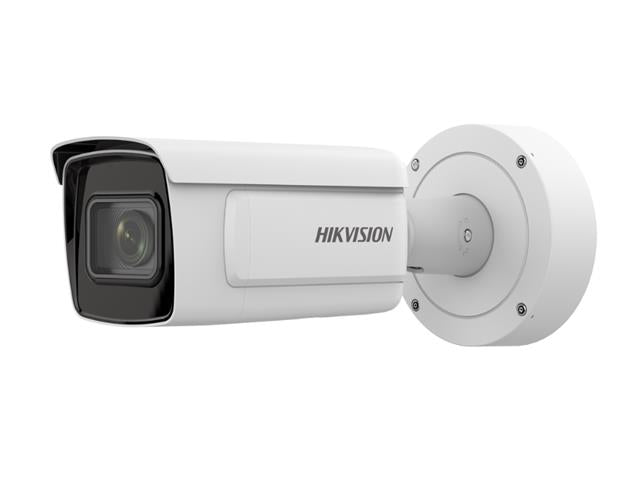

1. Datasheet - HKV IDS-2CD7A46G0-P-IZHS
