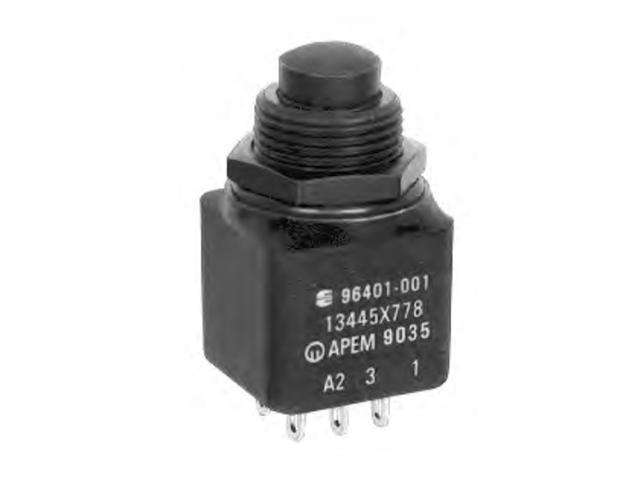

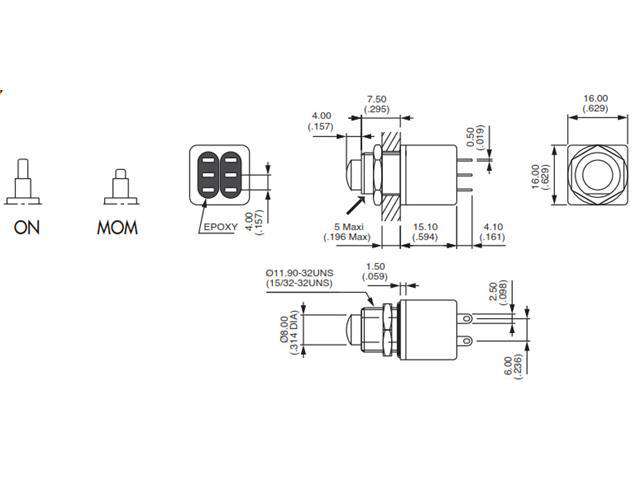

13445-4X778

• Highly Reliable Contacts
• Double Shell Case
• Compact Size
• Black Finish
• IP67 Full Sealing

Electrical Specifications

• Max. current/voltage rating with resistive load : 4A 28VDC
• Minimum load : 10mA 50mV, 10µA 5VDC

When used above 300mA 28VDC, the gold plating is removed on contact areas and is considered only as a protection againstoxidation during storage.

• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength
• • 1.000 Vrms 50 Hz min. between terminals
  • 2.000 Vrms 50 Hz min. between poles
  • 2.000 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life :
• • At 4A 28VDC : 10.000 cycles
  • At low level (50mV 10mA) : 150.000 cycles

General Specifications

• Total travel : 2 mm
• Torque : 1,50 Nm max. applied to nut
• Panel thickness : 5 mm (.196) max.
• Shock test : 50g - 11ms (IEC 68-2-27)
• Vibrations : 10-500 Hz - 10g (IEC68-2-6)
• Operating temperature : -40°C to +85°C
• Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
• Salt spray test : 96 hours (IEC 68-2-11)
