6SL3210-1PE11-8UL1

SKU: 6SL3210-1PE11-8UL1

BRAND: Siemens

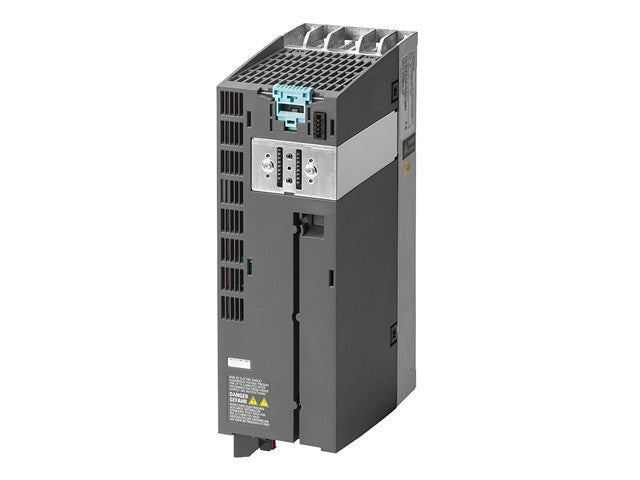

SINAMICS Power Module PM240-2 Unfiltered With Integrated Braking Chopper 380-480

SINAMICS Power Module

Specifications

  • Product designation: Power Module PM240-2, unfiltered with integrated braking chopper
  • Rated input voltage: 3-phase 380 … 480 V AC ±10% (47–63 Hz)
  • Frame size: FSA (Frame Size A)
  • Power rating (Low Overload – LO): 0.55 kW (150% for 3 s, 110% for 57 s, 100% for 240 s)
  • Power rating (High Overload – HO): 0.37 kW (200% for 3 s, 150% for 57 s, 100% for 240 s)
  • Rated output current (LO): 1.7 A
  • Rated output current (HO): 1.3 A
  • Cooling method: Internal air cooling
  • Integrated braking chopper: Yes
  • Overload capability: 150% (LO) or 200% (HO) for 3 seconds
  • Ambient temperature (LO): –10 °C to +40 °C
  • Ambient temperature (HO): –10 °C to +50 °C
  • Dimensions (H × W × D): 196 mm × 73 mm × 165 mm
  • Degree of protection: IP20 (open type)
  • Weight : Approximately 1.3 kg
  • Mounting type: Wall or control cabinet mounting
  • Series: SINAMICS G120 (PM240-2)
  • Function: Modular power module for G120 drives, used with control units such as CU240E-2 or CU250S-2
  • Typical applications: Pumps, fans, compressors, and general automation drives

Downloads

Additional Information

Device Module
Type SINAMICS | Power | Module
