BRAND: Hammond

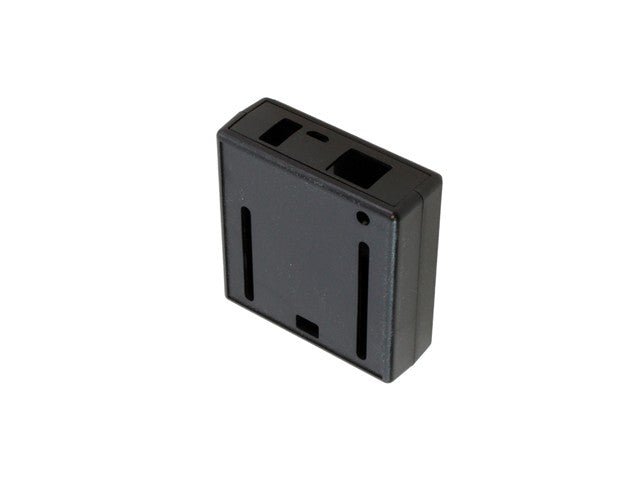

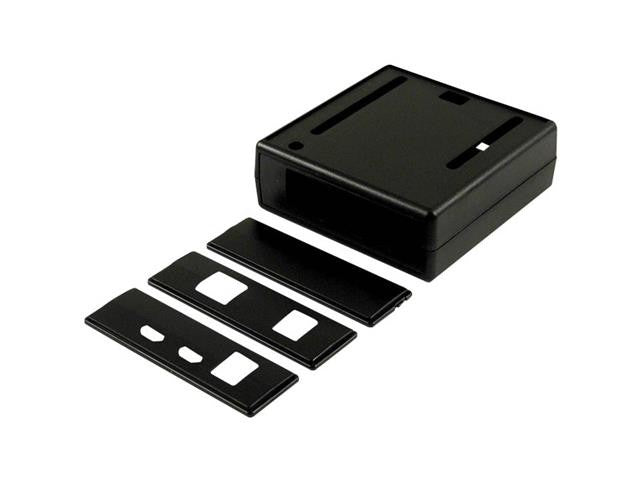

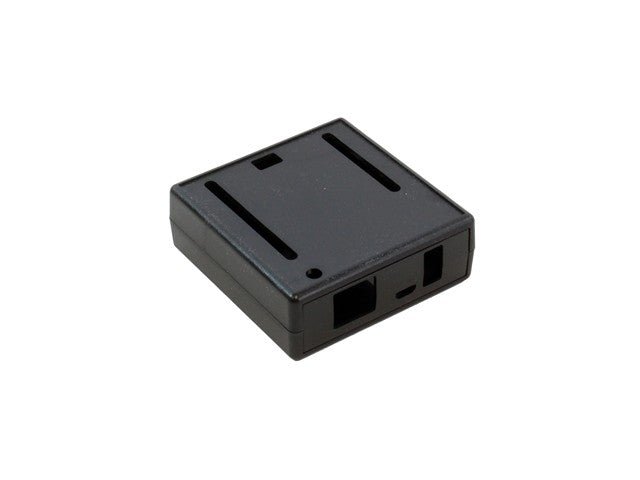

Enclosure Designed For Arduino


  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards
  • Ergonomically designed for a comfortable fit into the user’s hand
  • Designed to meet IP54 ratings
  • Recessed top for membrane display or pad
  • Units with battery door use our long life "three snap" door
  • Lap joint construction provides protection against dust accumulation and splashing water
  • Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture
  • Unit is secured with self tapping screws
  • Black and transparent blue enclosures include black screws, grey includes nickel finish screws.


Product Type Arduino Enclosure
Series 1593
Body Material ABS Plastic
External Dimensions 76 x 73.97 x 27 mm
External Length 76 mm
External Width 73.97 mm
External Height 27 mm
Internal Dimensions 67.01 x 67.89 x 22 mm
Internal Length 67.01 mm
Internal Width 67.89 mm
Internal Height 22 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
Protection Features Dust and Splashing Water
