Name: 2904909 - Communica [Part No: 2904909]
Brand: Phoenix Contact
SKU: 2904909
Price: 19826.53 ZAR
Availability: OutOfStock

SKU: 2904909

BRAND: Phoenix Contact

Sold Out
R 22,800.51_{(inc VAT)}
R 19,826.53_{(ex VAT)}

Category: PLC & DCS

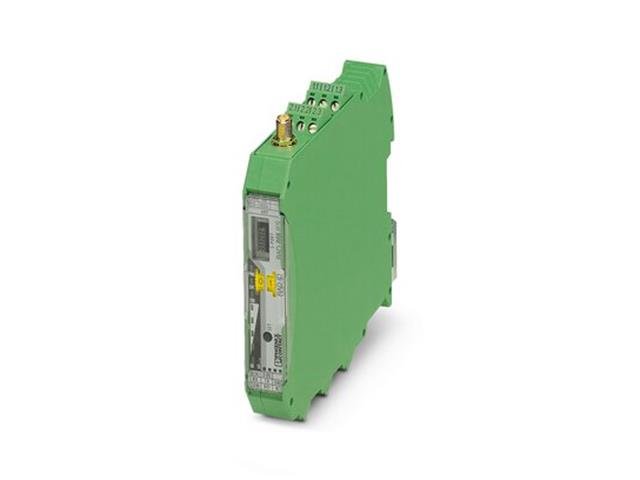

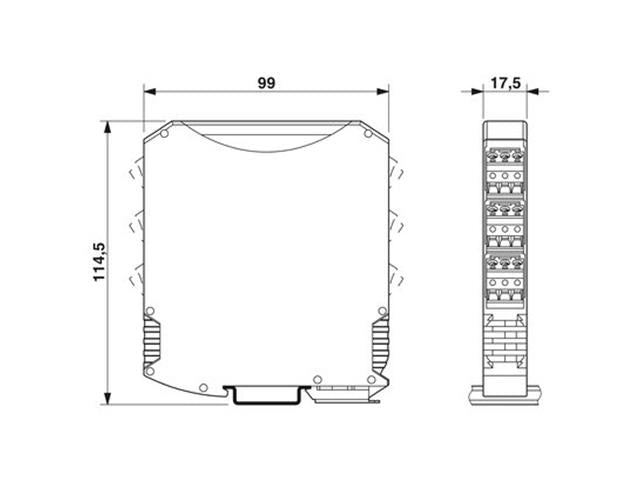

RAD-868-IFS Radioline Electronic Module

Specifications

Insulation characteristics
Overvoltage category	II
Degree of pollution	2

Electrical properties

Rated insulation voltage	60 V (In accordance with EN/IEC 60079-7)
Transient surge protection	Yes
System limits
Designation	Wireless module
Number of supported devices	≤ 99 (per wireless network)
Number of possible extension modules	≤ 32 (per wireless module)
System limits
Designation	Wireless network
I/O data mode	≤ 99 (I/O extension modules per wireless network, serial interfaces deactivated)
Serial data mode	0 (no I/O extension modules can be used)
PLC/Modbus RTU mode	≤ 99 (I/O extension modules per wireless network, access to extension modules via Modbus RTU protocol)
Supply
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30.5 V DC
Max. current consumption	≤ 65 mA (at 24 V DC, at 25 °C, stand-alone)
Max. current consumption	≤ 6 A (at 24 V DC, with DIN rail connector at full capacity)

Output data

Digital
Output name	RF link relay output
Number of outputs	1
Contact type	Changeover contact
Contact material	PdRu, gold-plated
Maximum switching voltage	30 V AC
Maximum switching voltage	60 V DC
Max. switching current	500 mA
Electrical service life	5x 10⁵ switching cycles with 0.5 A at 30 V DC
Analog
Output name	RSSI voltage output
Number of outputs	1
Voltage output signal	0 V ... 3 V

Connection data

Connection method	Screw connection
Stripping length	7 mm
Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	2.5 mm²
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	2.5 mm²
Conductor cross section AWG min.	24
Conductor cross section AWG max.	14

Interfaces

Wireless
Range	± 20 km (The range may be considerably above or below that stated, and depends on the environment, antenna technology, and the product used)
Serial: RS-232
Data rate	300 bps / 600 bps / 1.2 kbps / 2.4 kbps / 4.8 kbps / 9.6 kbps / 19.2 kbps / 38.4 kbps / 57.6 kbps / 93.75 kbps / 115.2 kbps
Connection method	COMBICON plug-in screw terminal block
Connection technology	3-conductor
Transmission length	≤ 15 m
Serial: RS-485
Data rate	300 bps / 600 bps / 1.2 kbps / 2.4 kbps / 4.8 kbps / 9.6 kbps / 19.2 kbps / 38.4 kbps / 57.6 kbps / 93.75 kbps / 115.2 kbps
Connection method	COMBICON plug-in screw terminal block
Connection technology	2-conductor
Transmission length	≤ 1200 m
Termination resistor	390 Ω (switchable via DIP switches)
	150 Ω (switchable via DIP switches)
	390 Ω (switchable via DIP switches)
Serial: Configuration interface
Connection method	S-PORT (socket)
Wireless
Interface description	Trusted Wireless
Direction	Bi-directional
Frequency	868 MHz
Frequency range	869.4 MHz ... 869.65 MHz
Channel distance	30 kHz (Depending on the network structure and the data transmission rate)
Number of channel groups	14
Transmit capacity, minimum	16 dBm
Transmit capacity, maximum	≤ 27 dBm (500 mW, default setting, adjustable)

Device	Electronic Module
Type	RAD-868-IFS \| Radioline
