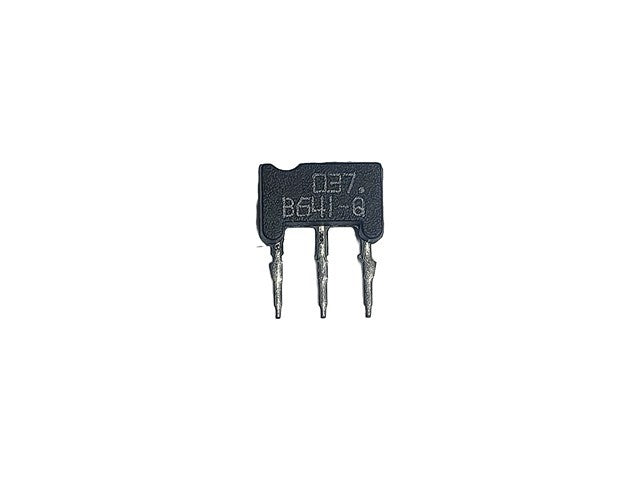

2SB641

Name: 2SB641 - Communica [Part No: 2SB641]
Brand: Communica
SKU: 2SB641
Price: 0.63 ZAR
Availability: InStock

SKU: 2SB641

BRAND: Communica

R 0.72_{(inc VAT)}
R 0.63_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Power Transistor

P 30V 0.1A 120MHz

Specifications

Type Designator: 2SB641
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.4 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 0.1 A
Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150(typ) MHz
Collector Capacitance (Cc): 3.5 pF
Forward Current Transfer Ratio (hFE), MIN: 160
Noise Figure, dB: -
Package: SC71

Additional Information

Frequency Response	120MHz
Import Data	SI-P 30V 0.1A 120MHz
Keywords	BJT
Device	Transistor
Type	Bipolar Junction
Polarity	PNP
Material	Silicon
Power Dissipation	0.4A

Discover the powerful 2SB641 PNP Bipolar Junction Transistor, designed for optimal performance with a frequency response of 120MHz. With a maximum collector current of 0.1A and excellent power dissipation, this silicon transistor ensures reliable operation for your electronic projects. Elevate your designs with this high-quality component that delivers efficiency and durability.
