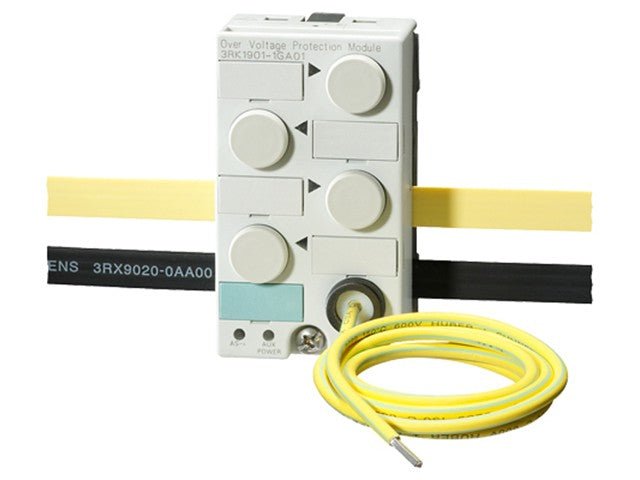

AS-i Overvoltage Protection Module IP67, For Lightning Protection Zone 2
AS-i Overvoltage Protection Module
Specifications
- Product Function: AS-Interface overvoltage protection module for lightning protection zone 2; provides surge protection (no ground fault or counter functions)
- AS-Interface Protocol: Not supported; module does not require an AS-i address
- Surge Protection: Rated discharge current (8/20 µs): – AS-Interface Core-PG: 10 kA – Core-core: 0.5 kA – AUX Power Core-PG: 10 kA – Core-core: 0.5 kA
- Protection Levels (Uₚ): At Is = rated: – AS-i Core-PG: 1.8 kV – Core-core: 100 V – AUX Power Core-PG: 1.8 kV – AUX Power Core-core: 70 V At 1 kV/µs: – AS-i Core-PG: 700 V – Core-core: 50 V – AUX Power Core-PG: 600 V – AUX Power Core-core: 40 V
- Ambient Temperature: Operating: –25 °C to +85 °C Storage: –40 °C to +85 °C
- Ingress Protection: IP67 — fully dust-tight and protected against immersion
- Dimensions: Width: 45 mm Height: 80 mm Depth: 25 mm
- Mounting Method: Wall or standard rail mounting
- Weight : Approx. 0.12 kg (120 g)
- Compliance & Approvals: EMC, marine/shipping; product is RoHS-compliant; country of origin: Czech Republic
- Overview: Provides robust surge protection at module-level while maintaining high environmental resistance and ease of integration for AS-Interface systems
Downloads
Additional Information
| Device |
Module |
| Type |
AS-i | Overvoltage | Protection | Module |
Protect your AS-Interface systems with the 3RK1901-1GA01 Overvoltage Protection Module. Designed for lightning protection zone 2, it offers robust surge protection up to 10 kA while ensuring full IP67 ingress protection. With easy wall or rail mounting, this reliable module ensures your devices remain operational in harsh environments, making it essential for industrial applications.
