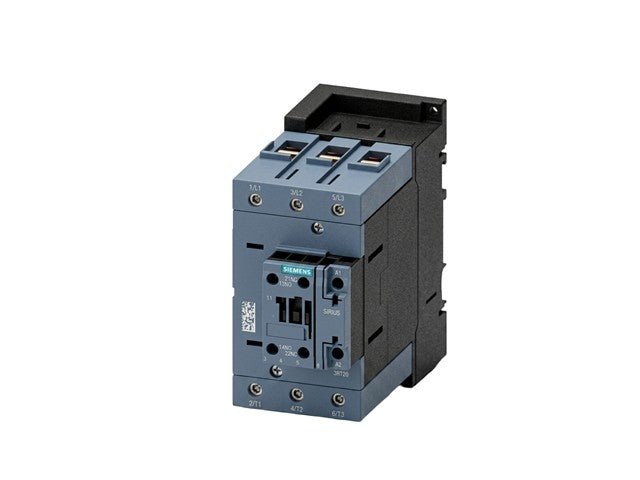

3RT2046-1AP00
SKU: 3RT2046-1AP00
BRAND: Siemens
R 5,472.85 (inc VAT) R 4,759.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Power Contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 230 V AC, 50 Hz, aux. contacts: 1 NO + 1 NC, screw terminal, size: S3
Power Contactor
Feature(s)
Compact S3-frame industrial contactor
Suitable for switching three-phase motors
Integrated 1NO + 1NC auxiliary contacts
High electrical and mechanical endurance
DIN rail and panel mounting options
Compatible with Siemens 3RU and 3RB overload relays
Finger-safe front terminals (IP20)
Suitable for safety-related motor shutdown applications
Specifications
Manufacturer: Siemens
Part Number: 3RT2046-1AP00
Product Family: SIRIUS 3RT20
Product Type: Power Contactor
Number of Poles: 3
Main Contacts: 3 NO
Auxiliary Contacts: 1 NO + 1 NC
Contactor Size: S3
Coil Voltage: 230 V AC, 50 Hz
Rated Operational Current (AC-3): 95 A
Maximum Operating Current: 96 A
Rated Operational Power (AC-3):
22 kW @ 230 V
45 kW @ 400 V
55 kW @ 500 V
75 kW @ 690 V
Horsepower Rating:
30 HP @ 230 V
75 HP @ 460 V
Rated Insulation Voltage: 690 V
Surge Withstand Voltage: 8 kV
Mounting: DIN rail or panel mounting
Terminal Type: Screw terminals
Degree of Protection: IP20
Operating Temperature: -25°C to +60°C
Mechanical Life: Up to 10 million operating cycles
Dimensions (H × W × D): 140 × 70 × 152 mm
Weight: Approx. 1.72 kg
Downloads
Additional Information
Device
Contactor
Type
Power | Contactor
Elevate your industrial operations with the Siemens 3RT2046-1AP00 Power Contactor. Designed for reliable switching of three-phase motors, it offers high endurance and versatility with DIN rail or panel mounting options. Featuring integrated auxiliary contacts and finger-safe terminals, this compact contactor ensures safety and efficiency in your applications. Perfect for high-performance motor control, it supports up to 95 A and 45 kW, making it an essential component for your electrical systems.
