3UF7113 - 1BA01 - 0 - Industrial Automation - 4047621025735

3UF7113-1BA01-0

Name: 3UF7113-1BA01-0 - Communica [Part No: 3UF7113-1BA01-0]
Brand: Siemens
SKU: 3UF7113-1BA01-0
Price: 6389 ZAR
Availability: OutOfStock

SKU: 3UF7113-1BA01-0

BRAND: Siemens

Sold Out
R 7,347.35_{(inc VAT)}
R 6,389.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Current Measuring Module

Current/Voltage Measuring Module V2; Set Current 20...200 A, Voltage Measurement Up To 690 V, Overall Width 120 Mm

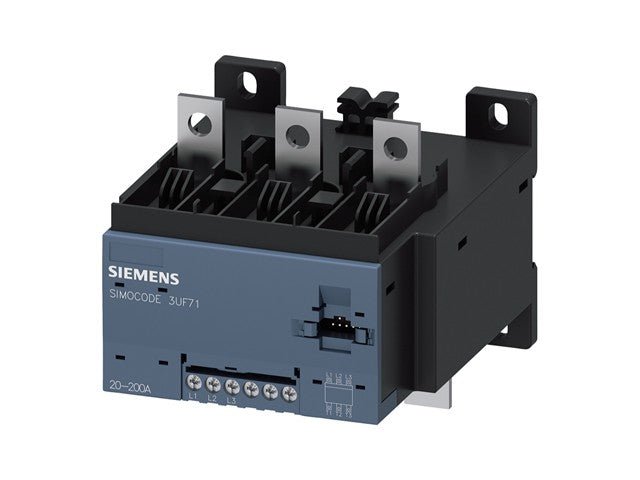

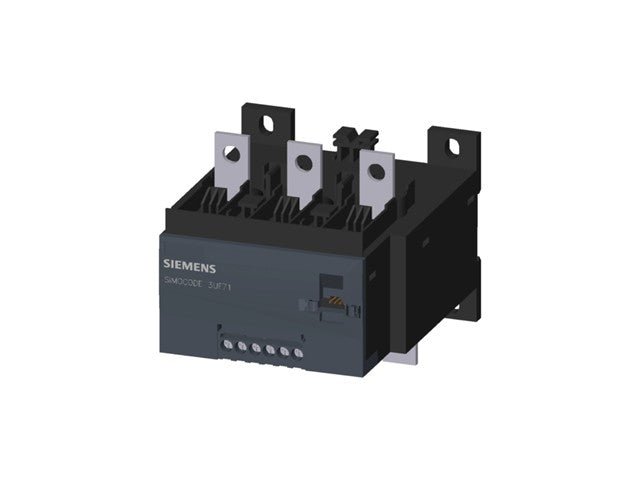

Current/Voltage Measuring Module V2

Specifications

Product Name: SIMOCODE pro Current/Voltage Measuring Module V2
Model Number: 3UF7113-1BA01-0
Product Family: SIMOCODE pro 3UF7 Motor Management & Control Devices
Function: Current and voltage measurement module (2nd generation)
Measurable Current Range: 20–200 A
Voltage Measurement Range: Up to 690 V AC (line-to-line)
Measured Variables: Current, voltage, active power, energy, frequency
Measuring Method (Current): True RMS (TRMS)
Measuring Method (Voltage): True RMS (TRMS)
External Current Transformers: Not supported
Rated Insulation Voltage: 690 V (Pollution Degree 3)
Rated Surge Voltage Withstand: Approx. 6 kV
Shock Resistance: 15 g / 11 ms (IEC 60068-2-27)
Vibration Resistance: 1–6 Hz: 15 mm, 6–500 Hz: 2 g (IEC 60068-2-6)
Main Circuit Connection: Busbar connection system
Control / Measurement Connection: Screw terminals

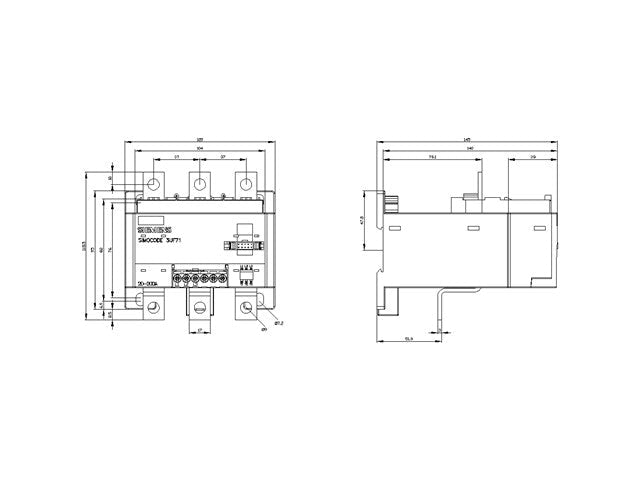

Width: Approx. 120 mm
Weight : Approx. 1.04 kg
Operating Voltage Range: AC 110–690 V, 50/60 Hz
Protection Class: IP00
Mounting: DIN rail or busbar rack mounting
Country of Origin: Germany
Compatible Basic Units: SIMOCODE pro V basic units (PN, PB, MR, EIP variants)

Downloads

Datasheet

Additional Information

Device	Measuring Module
Type	Current/Voltage \| Measuring \| Module \| V2
