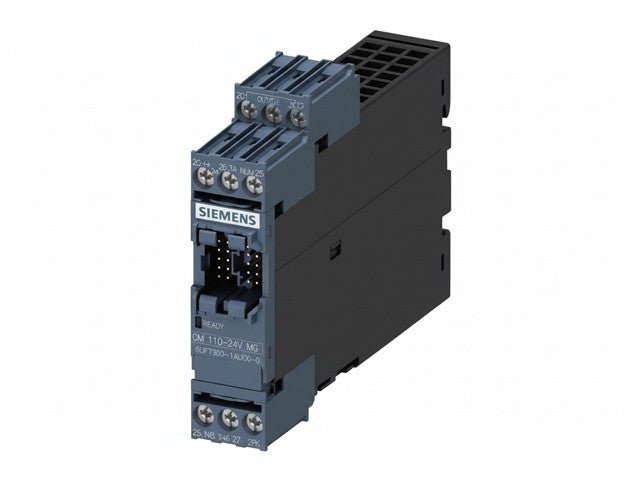

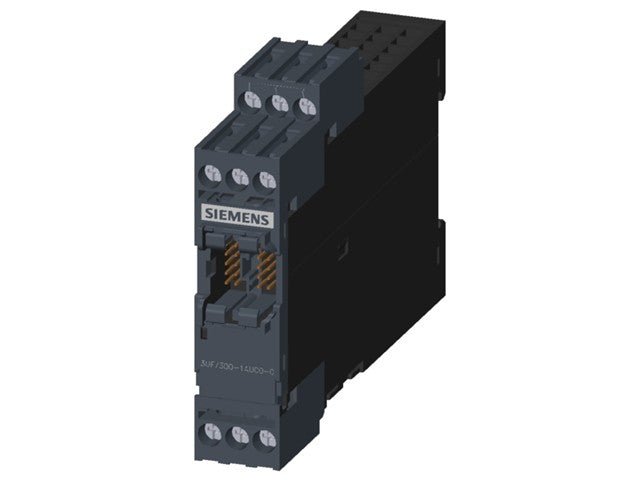

3UF7300-1AU00-0

SKU: 3UF7300-1AU00-0

BRAND: Siemens


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00
Simocode Digital Module, 4 Inputs And 2 Relay Outputs, Input Voltage 110-240 V Ac/dc Relay Outputs Monostable, Max. 2 Digital Modules

Simocode Digital Module

Specifications

  • Product Name: SIMOCODE pro Digital Module
  • Model Number: 3UF7300-1AU00-0
  • Function: Digital extension module for SIMOCODE pro V basic unit
  • Module Type: Digital I/O extension
  • Digital Inputs: 4 × digital inputs
  • Relay Outputs: 2 × relay outputs (monostable)
  • Input Supply Voltage: AC/DC 110–240 V
  • Consumed Active Power: Approx. 0.7 W
  • Insulation Voltage: 300 V (pollution degree 3)
  • Surge Voltage Resistance: 4 000 V
  • Protection Class: IP20
  • Shock Resistance: 15 g / 11 ms (IEC 60068-2-27)
  • Vibration Resistance: 1–6 Hz: 15 mm; 6–500 Hz: 2 g (IEC 60068-2-6)
  • Switching Capacity (AC-15, NO): 24 V: 6 A, 120 V: 6 A, 230 V: 3 A
  • Switching Capacity (DC-13, NO): 24 V: 2 A, 60 V: 0.55 A, 125 V: 0.25 A
  • Continuous Current (NO contacts): 6 A @ 50 °C, 5 A @ 60 °C
  • Mechanical Life (typ.): ~10 000 000 cycles
  • Electrical Endurance (typ.): ~100 000 cycles
  • Max Digital Modules per Base Unit: 2
  • Weight: ~0.156–0.157 kg
  • Mounting/Connection: Screw terminals
  • Product Family: SIMOCODE pro 3UF7 motor management & control devices
  • Country of Origin: Germany

Downloads

Additional Information

Device Digital Module
Type Simocode | Digital | Module
