3UF7310-1AU00-0

Name: 3UF7310-1AU00-0 - Communica [Part No: 3UF7310-1AU00-0]
Brand: Siemens
SKU: 3UF7310-1AU00-0
Price: 3878 ZAR
Availability: OutOfStock

SKU: 3UF7310-1AU00-0

BRAND: Siemens

Sold Out
R 4,459.70_{(inc VAT)}
R 3,878.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Industrial Relays

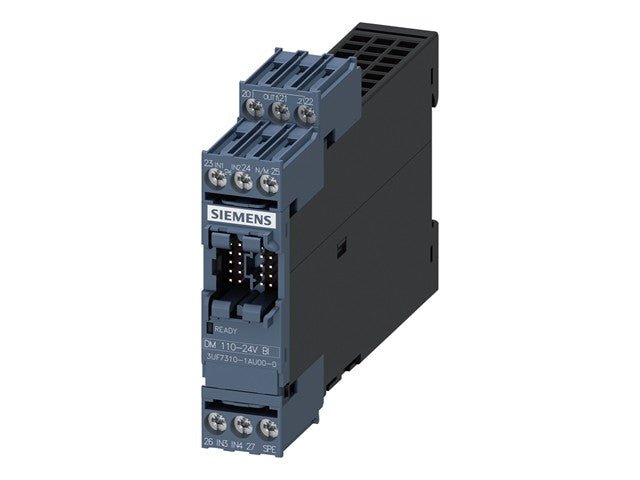

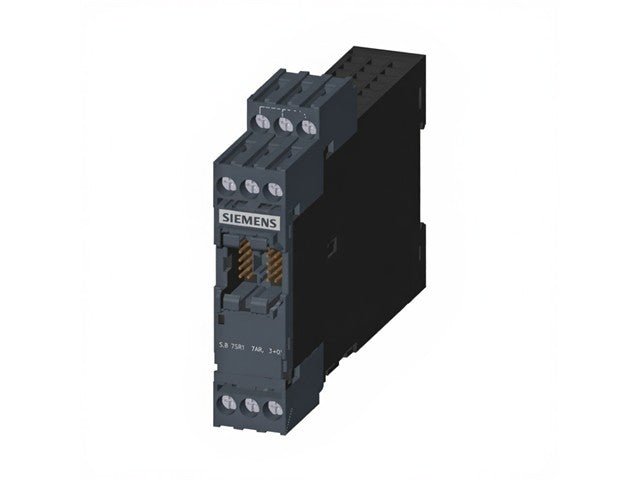

Digital Module, 4 Inputs And 2 Relay Outputs, Input Voltage 110-240 V AC/DC Relay Outputs Bistable, Max. 2 Digital Modules, For Simocode Pro V Basic Unit

Digital Module, 4 Inputs And 2 Relay Outputs, Input Voltage

Specifications

Product Name: SIMOCODE pro Digital Module
Model Number: 3UF7310-1AU00-0
Product Family: SIMOCODE pro 3UF7 Motor Management & Control Devices
Function: Digital module with 4 digital inputs and 2 relay outputs
Digital Inputs: 4 × digital inputs
Relay Outputs: 2 × relay outputs (bistable)
Control Supply Voltage: AC/DC 110–240 V
Power Consumption: Approx. 0.7 W
Rated Insulation Voltage: 300 V (Pollution Degree 3)
Surge Voltage Withstand: 4 kV
Switching Capacity (AC-15, NO): 24 V: 6 A, 120 V: 6 A,230 V: 3 A
Switching Capacity (DC-13, NO): 24 V: 2 A, 60 V: 0.55 A, 125 V: 0.25 A
Continuous Current (NO contacts): 6 A at 50 °C, 5 A at 60 °C
Mechanical Service Life: Approx. 10 million operations
Electrical Endurance: Approx. 100,000 operations
Electrical Connection: Screw terminals
Protection Class: IP20
Shock Resistance: 15 g / 11 ms (IEC 60068-2-27)
Vibration Resistance: 1–6 Hz: 15 mm, 6–500 Hz: 2 g
Mounting: Screw or snap-on mounting (any orientation)
Dimensions (H × W × D): Approx. 92 × 22.5 × 124 mm
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +80 °C
Country of Origin: Germany

Downloads

Datasheet

Additional Information

Device	Digital Module
Type	Digital \| Module \| 4 \| Inputs \| 2 \| Relay \| Outputs \| Input Voltage
