6AV2124 - 1MC01 - 0AX0 - Industrial Automation - 4025515079033

6AV2124-1MC01-0AX0

Name: 6AV2124-1MC01-0AX0 - Communica [Part No: 6AV2124-1MC01-0AX0]
Brand: Siemens
SKU: 6AV2124-1MC01-0AX0
Price: 48838 ZAR
Availability: InStock

SKU: 6AV2124-1MC01-0AX0

BRAND: Siemens

R 56,163.70_{(inc VAT)}
R 48,838.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Industrial Automation

Category: HMI Displays

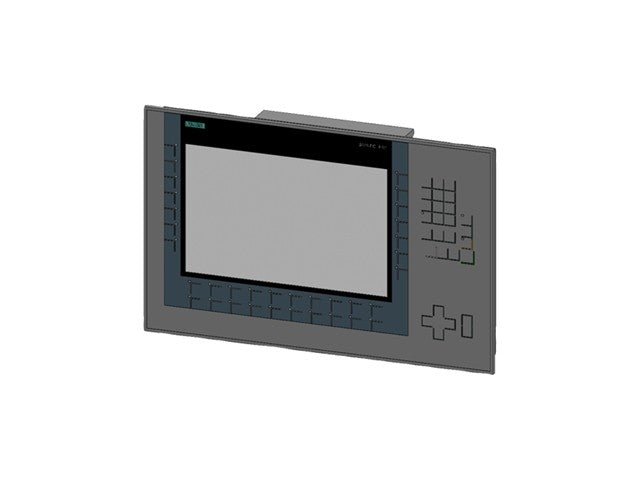

SIMATIC HMI KP1200 Comfort, Comfort Panel, Key Operation, 12" Widescreen TFT Display

SIMATIC HMI KP1200

Specifications

Product Name : SIMATIC HMI KP1200 Comfort Panel
Model Number: 6AV2124-1MC01-0AX0
Display Type: Widescreen TFT LCD
Screen Size: 12.1 inch (diagonal)
Display Resolution: 1280 × 800 pixels
Colors: 16,777,216 (24-bit)
Backlight MTBF: ~80,000 h
Backlight Dimming: Yes (0–100 %)
Control/Operation: Key-based input (function & system keys)
Number of Function Keys: 34 (with LEDs)
User Memory 12 MB configuration memory
Operating System Windows CE 6.0
Configuration Software WinCC Comfort V11 (TIA Portal)
Communication Interfaces Industrial Ethernet (PROFINET)
MPI / PROFIBUS DP (RS-485)
Ethernet Ports 2 × PROFINET (with integrated switch)
MPI/PROFIBUS DP Port 1 × RS-485
USB Interfaces USB Host × 2, USB Device × 1
SD Card Slots 2 × SD
Supply Voltage DC 24 V (19.2–28.8 V DC)
Current Consumption ~0.85 A at 24 V DC
Power Consumption (typ.) ~20 W
Mounting Type Panel mount (vertical orientation)
Front Protection Rating IP65 (when installed correctly)
Rear Protection Rating IP20
Operating Temperature 0 °C to +50 °C
Storage Temperature –20 °C to +60 °C
Weight 4.4 kg
Display Width × Height 261.1 × 163.2 mm
Installation Cut-out (W × H) ~310 × 221 mm
Operating System Support S7-1200, S7-1500, S7-300/400, LOGO!, others via TIA Portal
Typical Applications Machine control and process visualization
Country of Origin Germany

Downloads

Datasheet

Additional Information

Device	Display
Type	SIMATIC \| HMI \| KP1200 \| Widescreen \| TFT \| Display
