6ES7322-1BH01-0AA0

6ES7322-1BH01-0AA0

SKU: 6ES7322-1BH01-0AA0

BRAND: Siemens


In Stock
R 12,515.45 (inc VAT)
R 10,883.00 (ex VAT)

Collections: Electromechanical

Type: Controllers

Category: PLC & DCS

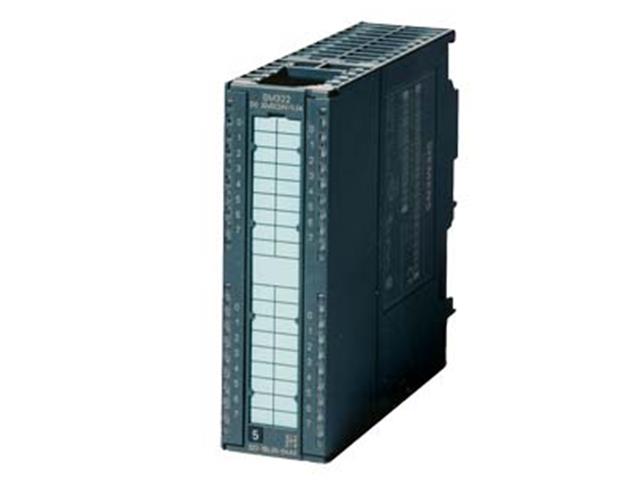

SIMATIC S7-300, Digital Output SM 322, Isolated, 16 DO, 24 V DC, 0.5A, 1x 20-Pole, Total Current 4 A/group (8 A/Module)

Digital Output SM 322

Specifications

    Supply Voltage

    Load Voltage L+

  • Rated Value (DC) : 24 V
  • Permissible Range, Lower Limit (DC) : 20.4 V
  • Permissible Range, Upper Limit (DC) : 28.8 V

  • Input Current

  • From Load Voltage L+ (without load), max. : 80 mA
  • From Backplane Bus 5 V DC, max. : 80 mA
    • Power Loss
  • Power loss, typ. : 4.9 W

    • Digital Outputs

  • Number of digital outputs : 16
  • Limitation of inductive shutdown voltage to : L+ (-53 V)

    • Switching Capacity of the Outputs

  • On Lamp Load, max. : 5 W

    • Load Resistance Range

  • Lower Limit : 48 Ω
  • Upper Limit : 4 k&Omega

    • Output Voltage

  • For signal ""1"", min. : L+ (-0.8 V)

    • Output Current

  • For Signal ""1"" Rated Value : 0.5 A
  • For Signal ""1"" Minimum Load Current : 5 mA
  • For Signal ""0"" Residual Current, Max. : 0.5 mA

    • Switching Frequency

  • With Resistive Load, max. : 100 Hz
  • With Inductive Load, max. : 0.5 Hz
  • On Lamp Load, max. : 10 Hz

    • Total Current of the Outputs (per group)

    Horizontal Installation

  • Up to 40 °C, max. : 4 A
  • Up to 60 °C, max. : 3 A

    • Vertical Installation

  • Up to 40 °C, max. : 2 A

    • Cable Length

  • Shielded, max. : 1 000 m
  • Unshielded, max. : 600 m

Downloads

Additional Information

Device Digital Output
Type SM 322
