6FX5002-5CN27-1CF0

SKU: 6FX5002-5CN27-1CF0

BRAND: Siemens

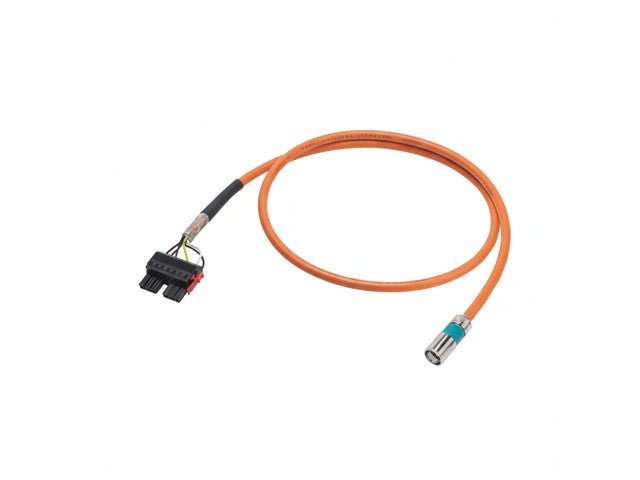

Power Cable Pre-assembled

Power Cable

Specifications

  • Article / Order Code: 6FX5002-5CN27-1CF0
  • Product Description: Pre-assembled power cable, type “MOTION-CONNECT 500” for SINAMICS S120 Booksize motor module (C-/D-types)
  • Cable Type: MOTION-CONNECT 500
  • Number of Cores × Cross-Section: 4 × 1.5 mm²
  • Rated Voltage (V0/V according to EN 50395): 600 V / 1000 V
  • Test Voltage (Power Conductors): 4.0 kV
  • Test Voltage (Signal Conductors): 2.0 kV
  • Outer Diameter (Approx.): 8.4 mm
  • Connector Type (Motor Side): SPEED-CONNECT (Size 0.5)
  • Converter Connection: SINAMICS S120 Booksize motor module (C/D-types)
  • Static Bending Radius (Fixed Installation): 21 mm
  • Dynamic Bending Radius (Flexible Installation): 155 mm
  • Ambient Temperature (Fixed Cable): −20 °C to +80 °C
  • Ambient Temperature (Moving Cable): 0 °C to +60 °C
  • Sheath Material / Colour: PVC / Orange (RAL 2003)
  • Insulation Type: CFC- and silicone-free
  • Approvals: UL and CSA certified
  • Protection Class: IP20
  • Typical Application: Connection between SINAMICS S120 drive and motor
  • Manufacturer: Siemens AG
  • Country of Origin: Germany
