6FX5002-5DN27-1CF0

Name: 6FX5002-5DN27-1CF0 - Communica [Part No: 6FX5002-5DN27-1CF0]
Brand: Siemens
SKU: 6FX5002-5DN27-1CF0
Price: 6117 ZAR
Availability: OutOfStock

SKU: 6FX5002-5DN27-1CF0

BRAND: Siemens

Sold Out
R 7,034.55_{(inc VAT)}
R 6,117.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Industrial Ethernet Cables

Power Cable Pre-assembled Type 6FX5002-5DN27 4X1.5, (2x1.5)C C Connector Speed-connect Size 0.5 For Sinamics S120 UL/CSA, Desina DMAX = 10.8 MM Length (M) = +0 +20 +5 +0

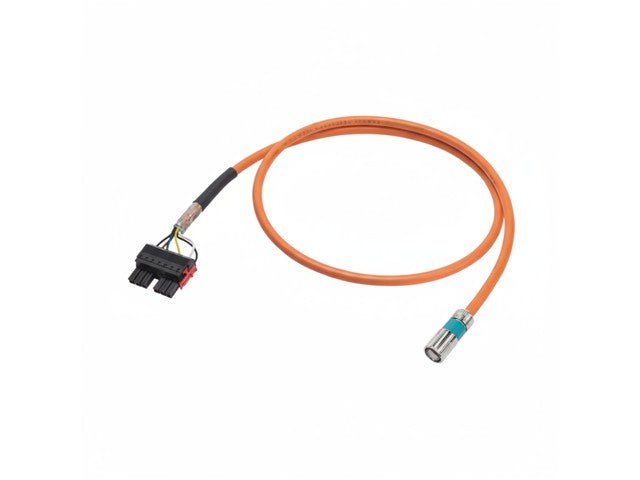

Power Cable Pre-assembled

Specifications

Article / Order Code: 6FX5002-5DN27-1CF0
Product Description: Pre-assembled power cable, type “MOTION-CONNECT 500”, for use with SINAMICS S120 Booksize motor modules (C-/D-types)
Conductor Configuration: 4 × 1.5 mm² main power conductors + (2 × 1.5 mm²) control/signal conductors
Connector Type: SPEED-CONNECT, size 0.5
Maximum Outer Diameter (approx): ~10.8 mm
Static Bending Radius (fixed installation): Minimum ~21 mm
Dynamic Bending Radius (moving installation): Minimum ~155 mm
Ambient Temperature (fixed cable): –20 °C to +80 °C
Ambient Temperature (moving cable): 0 °C to +60 °C
Sheath Material & Colour: Industrial PVC sheath, colour orange (RAL 2003)
Insulation Type: CFC-free and silicone-free
Approvals / Certification: UL and CSA certification (USA/Canada)
Compatible Systems: For connection between SINAMICS S120 drive system and compatible motors
Manufacturer: Siemens AG
Country of Origin: Germany

Downloads

Datasheet

Additional Information

Device	Cable
Type	Power \| Cable \| Pre-assembled
