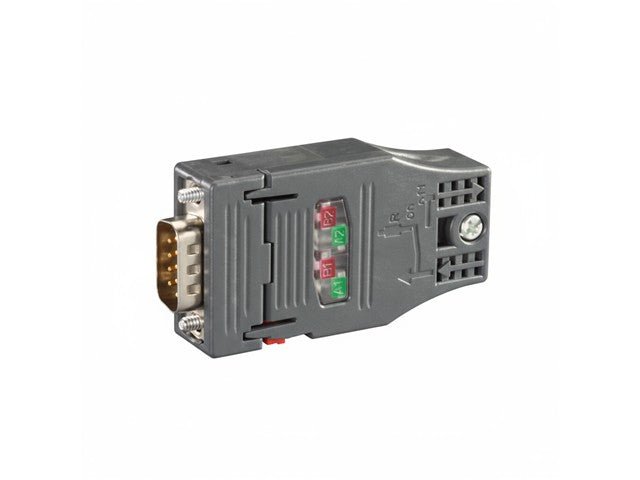

PROFIBUS FC RS 485 Plug 180 PROFIBUS Connector with FastConnect Connection Plug And Axial Cable Outlet For Industry PC, SIMATIC OP, OLM,
PROFIBUS FC RS 485 Plug 180 PROFIBUS Connector
Specifications
Parameter: Value
Product type / designation: PROFIBUS FC bus connector RS 485 plug 180° with FastConnect connection and axial cable outlet
Use / suitability: For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transfer rate (PROFIBUS): 9.6 kbit/s to 12 Mbit/s
Number of electrical connections: 2 for PROFIBUS cables, 1 for network components/terminal equipment
Electrical connection type (cables): Integrated insulation displacement contacts for 2-core PROFIBUS FC installation cables
Electrical connection type (network component): 9-pin Sub-D connector (male)
FastConnect support: Yes
Terminating resistor / disconnect function: Integrated resistor combination selectable via slide-switch; when resistor is connected, outgoing bus is isolated
Enclosure material: Plastic housing
Locking mechanism: Screwed joint
Cable outlet type: 180° axial cable outlet
Dimensions (W × H × D): 16 mm × 62 mm × 34.5 mm
Net weight: Approximately 40 g
Ambient temperature (operation): −40 °C to +70 °C
Ambient temperature (storage): −25 °C to +80 °C
Ambient temperature (transport): −25 °C to +80 °C
Relative humidity (25 °C, non-condensing): Max 75 %
Protection class: IP20
Additional features: Silicon-free construction, includes strain relief, no PG connection socket
Enhance your industrial connectivity with the 6GK1500-0FC10 PROFIBUS FC RS 485 Plug. Designed for seamless integration, this reliable connector supports transfer rates up to 12 Mbit/s and features a FastConnect design for effortless setup. Built to withstand extreme temperatures and humidity, it ensures durable performance in demanding environments, making it the ideal choice for your PROFIBUS network.
