SITRANS P320 Pressure Transmitter With Custom Configuration

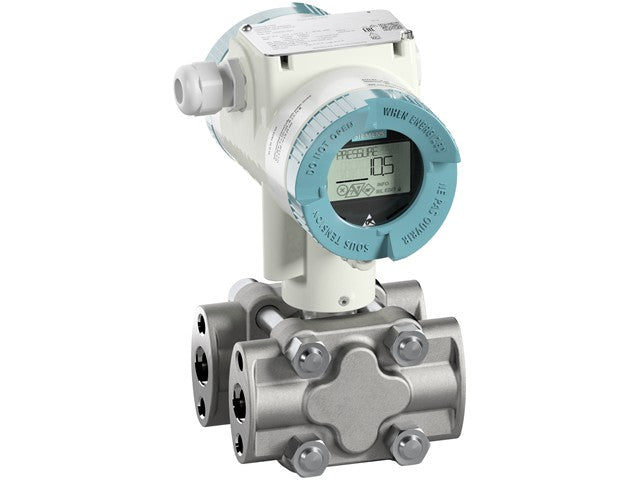

SITRANS P320 Pressure Transmitter
Specifications
Manufacturer: Siemens
Product family: SITRANS P320
Type: Differential pressure and flow transmitter
Measurement type:
Differential pressure
Flow measurement
Communication / output:
HART protocol
4…20 mA analog output
Pressure rating:
PN160
Measuring cell filling:
Silicone oil
Maximum measuring span:
1600 mbar (643 inH₂O)
Process connection:
Version for diaphragm seal connection
Fastening thread M10 (DIN 19213)
Wetted parts material:
Stainless steel 316L / 1.4404
Seal diaphragms: Stainless steel 316L
Sensor flange material:
Stainless steel 316 / 1.4408
Housing material:
Die-cast aluminum housing
Device design:
Dual chamber design
Explosion protection:
Intrinsic safety (ATEX approved)
Electrical connection:
2 × M20 × 1.5 cable entries
Display:
Integrated local display
Lid with glass viewing window
Option A00:
Cable gland and sealing plug attached (plastic)
Option C11:
German labeling / configuration in bar units
Option E20:
ATEX approval (Europe)
Communication features:
Remote diagnostics
Remote parameter configuration via HART
Protection features:
Industrial EMC protection
Intrinsic safety protection
Overpressure resistant design
Mounting type:
Process mounting with diaphragm seal arrangement
Applications:
Industrial automation
Oil & gas systems
Chemical processing
Water treatment plants
Differential pressure flow systems
Additional features:
High accuracy pressure measurement
Suitable for hazardous industrial environments
Supports remote seal installation systems
Additional Information
Device
Transmitter
Type
SITRANS | P320 | Pressure | Transmitter
Experience precision and reliability with the Sitrans P320 Pressure Transmitter. Custom-configured for optimal performance, this device ensures accurate pressure readings, enhancing your operations and boosting efficiency. Upgrade today for superior monitoring and control.
