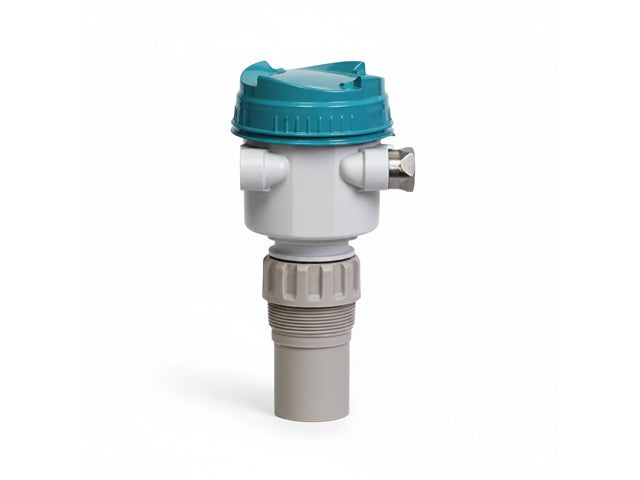

SITRANS Probe LU240 Ultrasonic Level Transmitter Ideal For Level, Volume, And Volume Flow Measurements.
SITRANS Probe Ultrasonic Level Transmitter
Specifications
- Product / Model: SITRANS Probe LU240 Ultrasonic Level Transmitter – 7ML5110-1DE07-4AF1
- Measurement Principle: Ultrasonic (non-contact) for level, volume, and volume flow measurements
- Output Signal / Communication: 4-20 mA with HART protocol
- Measurement Range: 200 … 6 000 mm (i.e. 0.2 … 6 m)
- Process Connection: R 2″ (BSPT), per EN 10226
- Cable Entries / Electrical Connections: 2 × M20 × 1.5 (one cable gland + one blocking plug included)
- Local Display / HMI: Yes — integrated display for local readings; blind lid of material PBT/PC
- Wetted Parts Material: PVDF copolymer
- Non-wetted Parts Material: Plastic (PBT/PC)
- Ingress Protection / Enclosure Rating: IP66 / IP68; Type 4X, 6 (for external enclosure ratings)
- Operating Temperature: Not explicitly in all sources, but typical LU240 versions: approx −40 °C to +80 °C for body/non-wetted parts in many related variants. (Exact spec for this MLFB should be checked.)
- Weight: ~ 1.25 kg
- Certifications / Approvals: CE, UKCA, KC, RCM, EAC; general purpose (non-Ex) per listed sources
- Enclosure / General Use Class: Ordinary Locations / General Purpose (non-explosive)
Additional Information
| Device |
Transmitter |
| Type |
SITRANS | Probe | Ultrasonic | Level | Transmitter |
Experience precise measurements with the SITRANS Probe LU240 Ultrasonic Level Transmitter (7ML5110-1DE07-4AF1). This reliable, non-contact device ensures accurate level, volume, and flow measurements, making it ideal for various applications. With an integrated display and robust IP66/IP68 rating, it withstands tough environments while delivering 4-20 mA output with HART protocol. Upgrade your measurement accuracy today!
