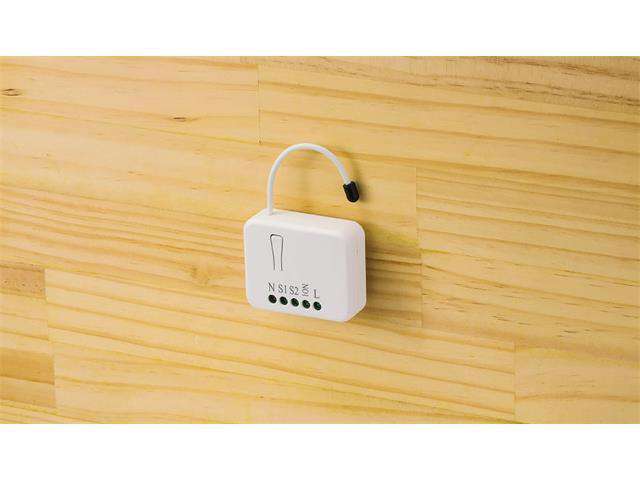

AIRLIVE DIMMER SWITCH SD-101

SKU: AIRLIVE DIMMER SWITCH SD-101

BRAND: AIRLIVE


Airlive Smart Life IOT, Z-Wave Plus, Home Automation, In Wall Power Dimmer Switch

Overview

Lighting control

The SD-101 is a in-wall light dimmer that can control up to 15 LED bulbs. It allows you to turn on or off the light at the touch of the APP. Even better, you can adjust to different level of brightness with our SR-101 Smart button.

Voice Control

The SD-101 works with Amazon Alexa or Google Home. Simply ask Alexa or Google home to turn on or turn off the light, then your room’s lighting is always under your command.

AirLive SmartLife Plus APP

The SmartLife Plus APP puts everything together in your smart home. You can view the reading or video of your device. The Scene manager let you design lighting and action for each room and occasions. The Macro allow you to set “If this then that” action. It allows you to tailor made your smart home to your need.

Features

  • Works with Smart Home IoT kit
  • Supply Voltage: 100 ~ 240 VAC/ 50-60 Hz
  • Dimmer Controls
  • Up to 15 Dimmable LED bulbs
    • 230Vac: 200W
    • - 120Vac: 100W
  • Longer Z-wave signal transmission
  • AES 128 bit Z-wave encryption

Specification

    • Model : SD-101 In-wall Dimmer Switch Z-wave Plus
    • Z-Wave Standard : Z-wave plus
    • Z-Wave Frequency :
      • CE:868.40 MHz, 869.85 MHz
      • FCC:908.40 MHz, 916.00 MHz
    • Maximum Transmission Distance : 40 M(Indoor)
    • Power Input Range : 0.01 ~ 1 A
    • Supply Voltage : 100 ~ 240 Vac
    • Maximum Output Current : 0.9 A (Resistive Load)
    • Output Rating :
      • 15 Dimmable LED bulbs
      • 230 Vac: 200 W
      • 120 Vac: 100 W
    • Function : Dimmer Controls
    • LED Indicator : 1 Red LED

      Dimension and Environment

    • Dimensions : 47.5(L) x 39(W) x 16.2(H) mm
    • Operating Temperature : 0 ~ 40° C
    • Storage Temperature : 85% RH max

Ordering Information

    • Model : SD-101 In-wall Dimmer Switch Z-wave Plus

Standard Package

  • Package Size : 13.1 x 6.2 x 3 cm
  • Product Weight : 0.026 kg
  • Package Weight : 0.046 kg
  • Package Content : SD-101 x 1
