AJAX DUAL CURTAIN OUTDOOR

SKU: AJAX DUAL CURTAIN OUTDOOR

BRAND: Ajax


Wireless Outdoor Dual Curtain Motion Detector 30m, Anti-Masking, Freq:868.0~868.6 MHz, 4×PIR Sensor, IP54, 174×123×88mm, 615g

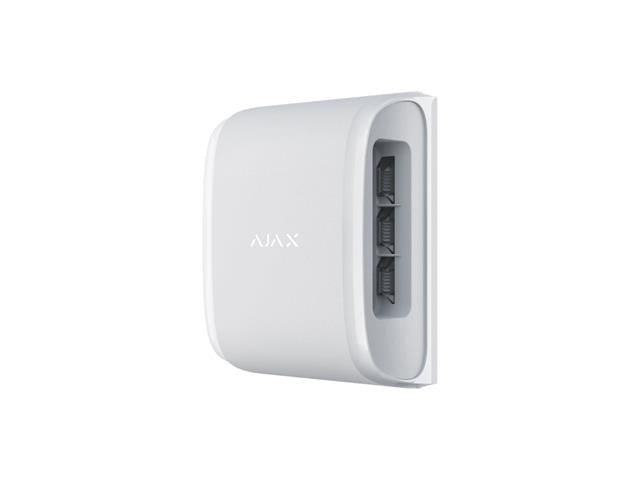

Dual Curtain Motion Detector

Overview

The Ajax line of street detectors now includes a bidirectional curtain motion detector that can monitor up to 30 meters of the perimeter, efficiently protecting the approaches to windows, doors, arches, fences, and window displays.

Specifications

  • Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX
  • Sensing element : IR sensor, 2 on each side
  • Motion detection distance : 4 to 15 meters (on each side, depends on settings)
  • Detection angle, horizontal : 4.5°
  • Possibility to deviate the horizontal viewing angle : Yes, by 3°
  • Motion detection speed : From 0.3 to 2 m/s
  • Pet immunity option : Pets up to 80cm in height
  • Near area detection : Yes
  • Protection against false triggering : Yes
  • Tamper protection : Yes
  • Protection against masking : Yes
  • Installation : indoor and Outdoor
  • Frequency band : 868.0 – 868.6 MHz
  • Maximum radio signal strength : 6.35 mW (limit up to 20 mW)
  • Radio signal modulation : GFSK
  • Up to 1,700 m  in an open space (in a perfect environment)
  • Power supply : 2 CR123 batteries, 3 V
  • Battery life : Up to 4 years
  • Protection class : IP54
  • Operating temperature range : -25°C to +60°C
  • Operating humidity : Up to 95%
  • Dimensions : 174 × 123 × 88 mm
  • Weight : 615 g
  • Warranty : 24 months

Downloads

Additional Information

Device Detector
Type Dual | Curtain | Motion

-->
