AJAX KEYPAD

Name: AJAX KEYPAD - Communica [Part No: AJAX KEYPAD]
Brand: Ajax
SKU: AJAX KEYPAD
Price: 1830 ZAR
Availability: InStock

SKU: AJAX KEYPAD

BRAND: Ajax

In Stock
R 2,104.50_{(inc VAT)}
R 1,830.00_{(ex VAT)}

Collections: AJAX, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Wireless Keypads

Wireless Indoor Touch Keypad 15 Buttons, Two-way Communication Between Devices, Frequency:868.0~ 868.6 MHz, 150x103x14mm, 197g

15 Buttons Touch Keypad

Overview

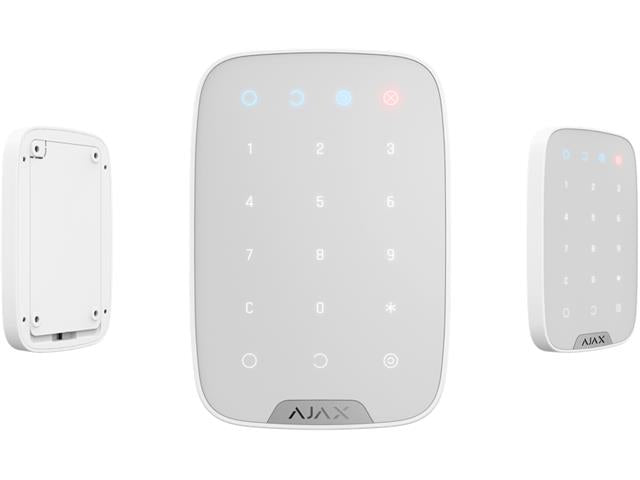

KeyPad

Wireless touch keypad is used for arming/disarming of Ajax security system. It is mounted in the room near the entrance door to provide quick access to the keypad.

Principle of operation

The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.

Installation and set up

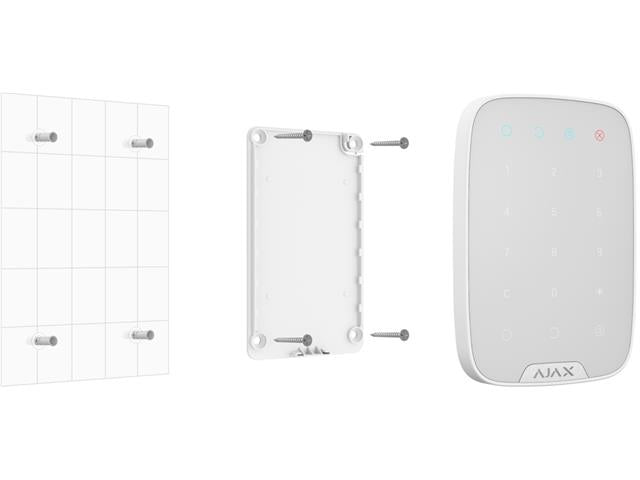

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Features

The device activates the full security mode by pressing one button
If the robber tries to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
The keypad is blocked automatically if the incorrect code is entered too many times

Specifications

Classification : Radio channel touch keypad
Type of keypad : Wireless, touch
Installation method : Indoors
Compatibility : Operates with all Ajax hubs, and range extenders
Number of buttons : 15
Duress code : Yes
User Passcode : YesProtection against passcode guessing : Yes
Arming/disarming indication: Yes

Power supply

Battery: 4 × ААA batteries, 3 V (batteries are installed in pairs)
Battery life : Up to 2 years

Jeweller radio technology

Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Keypad scanning period — 12 - 300 s

Temperature sensor : Available
Operating temperature range : From -10°С to +40°С
Permissible humidity : Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing : +
Dimensions : 150 × 103 × 14 mm
Weight : 197 g
Warranty : Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set

KeyPad touch keyboard
SmartBracket mounting panel
4 ААА batteries (pre-installed)
Installation set
User's guide

Downloads

User Manual - AJAX KEYPAD

Additional Information

Device	Touch Keypad
Type	15 Buttons
