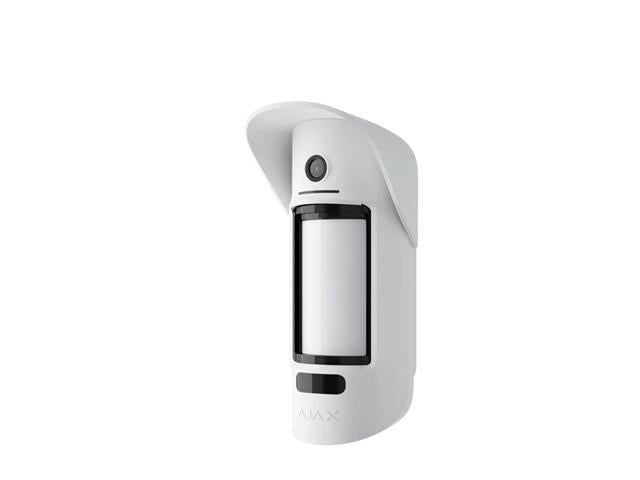

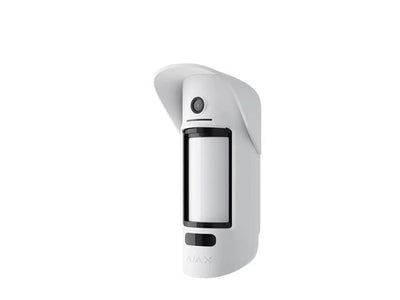

AJAX MOTIONCAM OUTDOOR

SKU: AJAX MOTIONCAM OUTDOOR

BRAND: Ajax


Wireless Outdoor Motion Detector With Photo Camera , Installation Height:0.8~1.3m , Pet Immunity , 4×CR123A Batteries , Motion Detection Distance ADJ:3-15m , : IP55 , 206×108×93mm , 470G

Wireless Outdoor Motion Detector

Specifications

  • Classification : Electro-optical radio channel security detector
  • Type of detector : Wireless
  • Installation method : Outdoors/indoor
  • Recommended installation height : 0,8 – 1,3 m
  • Compatibility : Hub 2, Hub 2 Plus Does not work with ReX radio signal range extender
  • Sensing element : 2 × PIR sensor
  • Motion detection distance : Adjustable, from 3 to 15 m
  • Pet immunity : Animals up to 80 cm tall
  • Sensitivity : Adjustable, 3 levels
  • Motion detector’s viewing angle : Horizontal 88,5° ,Vertical 80°
  • Camera’s angle : Horizontal 105° ,Vertical 102°
  • Distortion : Barrel, –77%
    Photo in case of alarm: Photo resolution:
                                      320 × 176 pixels (by default)
                                      640 × 352 pixels
                                      Shooting series up to 5 photos
  • Infrared light for shooting in the dark : Available
  • Power supply : 4 × CR123A batteries
  • Supply voltage : 3 V
  • Battery life : Up to 3 years (up to 2.5 years if “Delay when entering” setting is  activated), Calculate battery life
  • Jeweller radio technology: Communication range with the hub — up to 1,700 m in an open  space
                                           Two-way communication between hub and device
                                           Operating frequencies — 868.0–868.6 MHz4
                                           Self-adjusting RF output power — up to 20 mW
                                           Block encryption with a dynamic key
                                           Detector polling period — 12−300 s
                                           Frequency hopping
  • Alarm delivery time : 0.15 s
  • Wings radio technology :Transmission of a series of photos, Photo delivery time with a default settings: up to 9 seconds
  • Temperature sensor : Available
  • Operating temperature range : From −25°С to +60°С
  • Operating humidity : Up to 95%
  • Protection class : IP55
  • Anti-sabotage: Anti-masking, Protection against forgery, Jamming detection, Tamper-resistant
  • Remote configuration and testing : Available
  • CMS compatibility : CMS connectivity: Contact ID, SIA (DC-09), CMS software supporting visual alarms verification
  • Dimensions :206 × 108 × 93 mm
  • Weight : 470 g
  • Warranty : 24 months from the date of sale

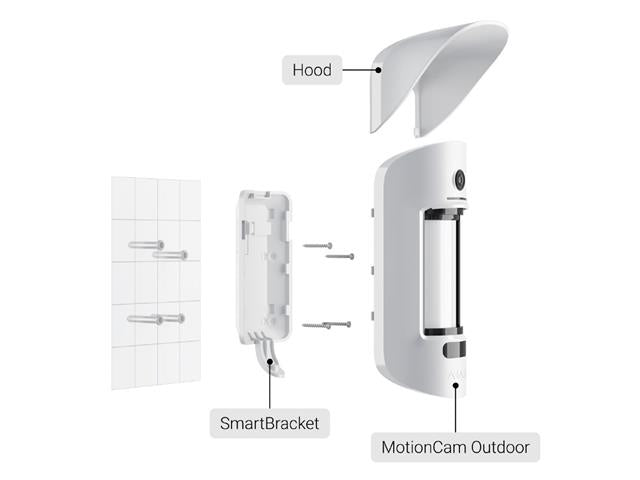

  • Complete set : MotionCam Outdoor motion detector
                          SmartBracket mounting panel
                          4 × CR123A batteries (pre-installed)
                          Installation kit
                          User's guide

Downloads

Additional Information

Device Detector
Type Wireless | Outdoor | Motion

-->
