Multi Transmitter 18 Zone Intergration Control Panel, Frequency:868.0~868.6 MHz, upto:2000m Signal Range, 110~255VAC, 50/60 Hz, Battery Backup:12 V/4 OR 7Ah (not included), 196×238×100mm, 805g

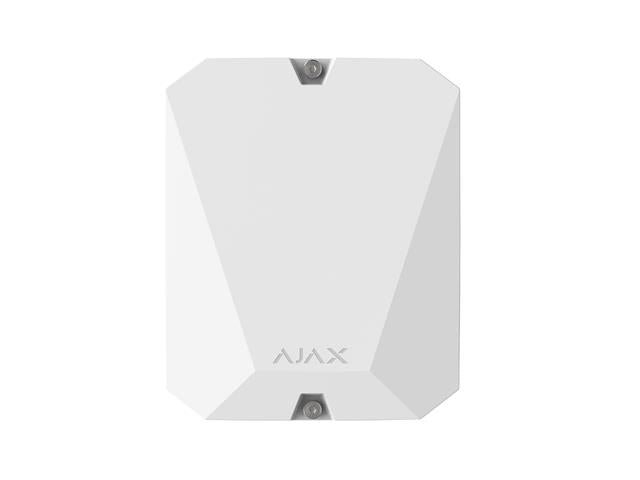

18 Zone Multi Transmitter
Overview
The Ajax MultiTransmitter allows you to add your existing wired alarm sensors to the Ajax system. This effectively gives you a hybrid system which connects your current wired alarm detectors to an Ajax Hub. It also allows you to add new wireless Ajax devices. Therefore, both existing wired and new wireless devices can be managed from the Ajax App with full Ajax functionality.
Features
- Instant connection loss detection with wired device (EOL)
- Cavity in the body for a backup battery 7 A⋅h
- 2 tampers that detect dismounting and opening of the body
Specifications
- Number of alarm/tamper zones : 18
- Supported detector contact types : NO, NC (without R), EOL (NC with R), EOL (NO with R)
- Resistance of the EOL resistor : 1 kΩ to 7.5 kΩ
- Alarm signals processing mode : Pulsed or bistable
- Main power supply : 110–255 V, 50/60 Hz
- Backup power : 12V DC
- Supported battery type : Battery with 4 or 7 A⋅h capacity (not included),
- Dimensions : 150 × 64 × 94 mm
- Detector power supply : 12 V DC, up to 1 A for all detector power supply outputs
- Protection against dismantling : Tamper
- Radio signal frequency band : 868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region
- Compatibility : Operates with all Ajax hubs, and range extenders
- Maximum radio signal power : Upto 7.29 mW (25 mW limit)
- Radio signal range : Up to 2,000 m in the line of sight
- Operating temperature range : From -10°С to +40°С
- Operating humidity : Upto 75%
- Dimensions : 196 × 238 × 100 mm
- Weight : 805 g
- Warranty : Replacement and repair during 24 months from the date of sale.
Complete set
- MultiTransmitter board
- Body
- Installation kit
- Power cable
- User Guide
- Service life
- 10 years
Downloads
Additional Information
| Device |
Transmitter |
| Type |
18 Zone | Multi |
