Aqara Panel Hub S1 Plus, Smart Home Control Panel, Zigbee Hub, Matter Bridge, Built-in 2 Electrical Switches & 6 Wireless Switches, Call Intercom, 2.4/5 GHz Wi-Fi, Supports Apple Home, Alexa, Google, USB-C I/P:5V/2A, Bluetooth, 220Vac Max8A
S1 Plus Panel Hub
Overview

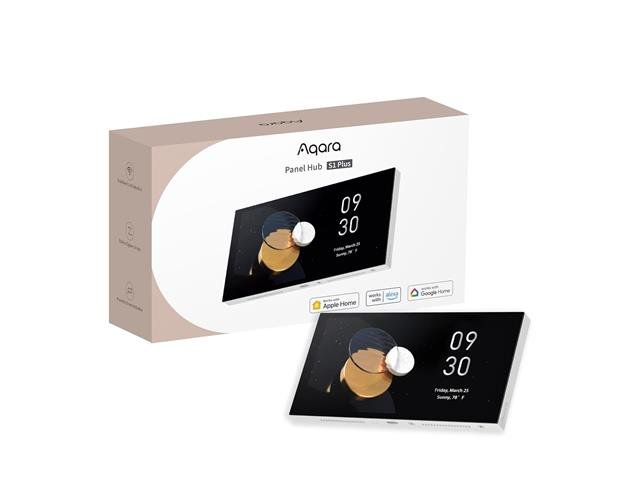

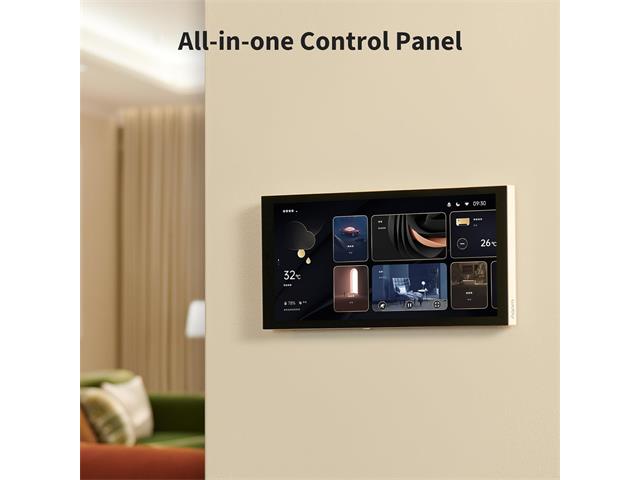

The Aqara Panel Hub S1 Plus EU is a high-end, whole-house smart control panel with a built-in
wall switch function. It supports both touchscreen and app control. Its 6.9-inch screen enables

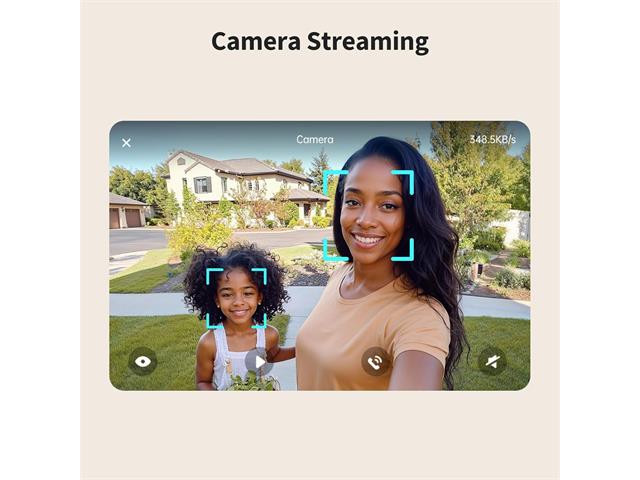

whole-house lighting and temperature control and supports video streaming from Aqara

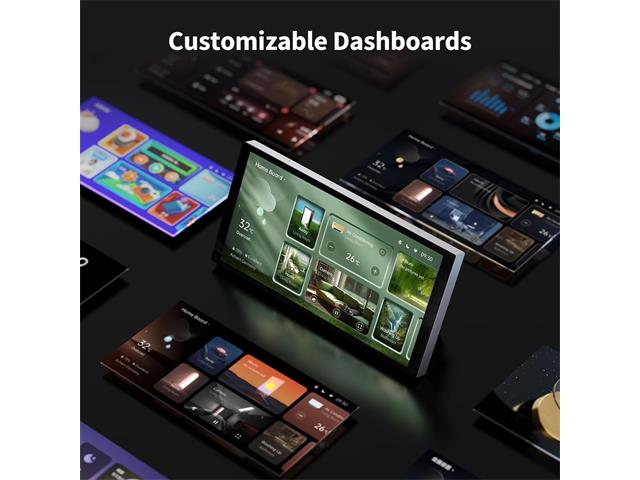

doorbells and cameras. With customizable dashboards, users can easily get started.
Additionally, it functions as a Matter Bridge and Zigbee 3.0 Hub, providing seamless integration
with third-party ecosystems and Aqara sub-devices.
Specifications
- Product Name: Panel Hub S1 Plus EU
- Model: MP-K03D

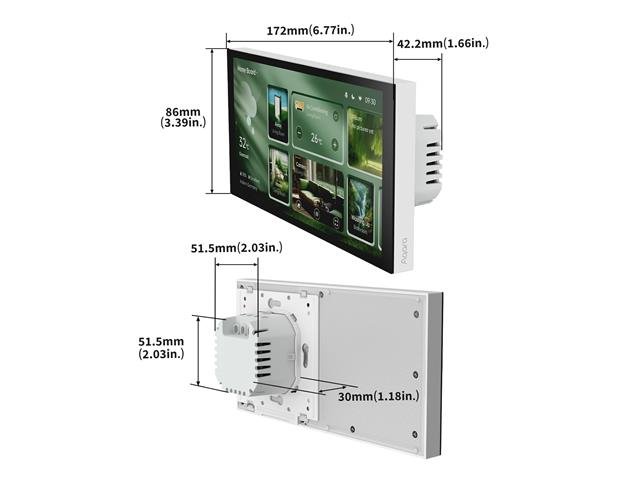

- Dimensions: 172 × 86 × 42.2 mm (6.77 × 3.39 × 1.66 in.)
- Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz), Zigbee IEEE802.15.4, Bluetooth
- Resolution: 1440 × 720
- Input Power: 200–240 V, 50/60 Hz, Max 8 A (Resistive Load)
- USB-C Input: 5V 2A
- Rated Load: Single channel: up to 300W; Dual channel: one channel supports up to 200W, the other up to 100W
- Operating Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
- Operating Humidity: 0 ~ 95% RH, no condensation
- In the Box: Panel Hub S1 Plus × 1, User Manual × 1, Compliance Statement × 1, Screw Kit × 2
Downloads
Additional Information
| Device |
Hub |
| Type |
S1 | Plus | Panel |
Transform your home with the AQARA PANEL HUB S1 PLUS, the ultimate smart home control center. Featuring a 6.9-inch touchscreen, seamless Zigbee and Matter integration, and customizable dashboards, this hub allows effortless management of your lighting and temperature while supporting voice commands through Apple Home, Alexa, and Google. Elevate your smart living experience today!
