Aqara Touchscreen Dial V1 EU, 2 Electrical Switches & 6 Wireless Switches , ON/OFF Control & Fine-Tuning Settings , Up to 18 Aqara Devices Supported , Supports Apple Home , Alexa, Google , Requires:HUB M3 , WiFi 2.4GHz/5GHz , Bluetooth , 86×86×62.1mm

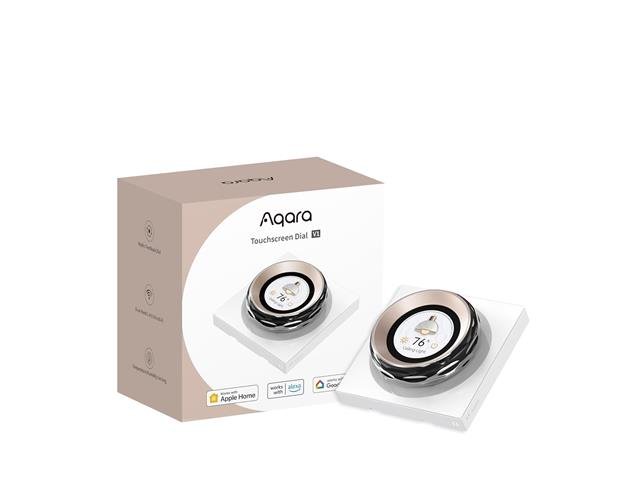

Touchscreen Dial V1 EU
Overview

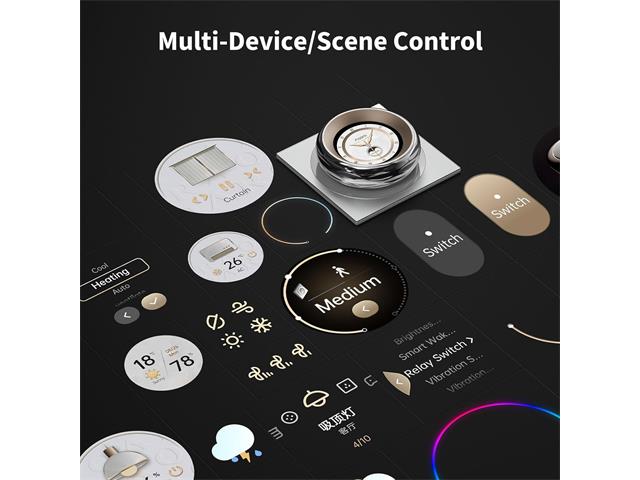

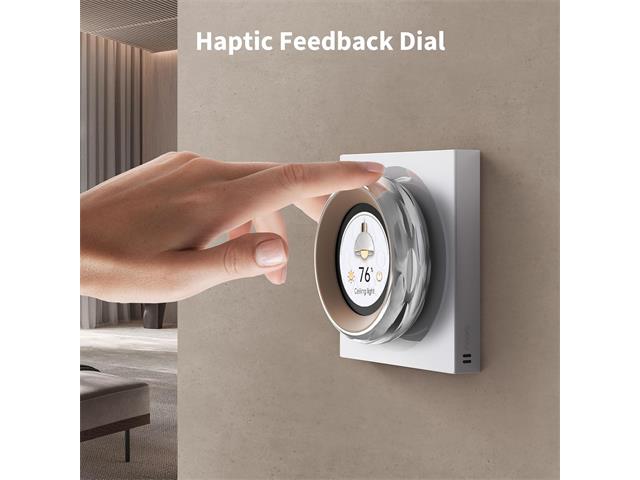

Aqara Touchscreen Dial V1 is a haptic feedback rotary dial wall switch with 2 relay switches
and 6 wireless switches, paired with a 1.32-inch round touch screen, which can adjust the
compatible Aqara device by sliding, clicking, and rotating. It achieves precise adjustment

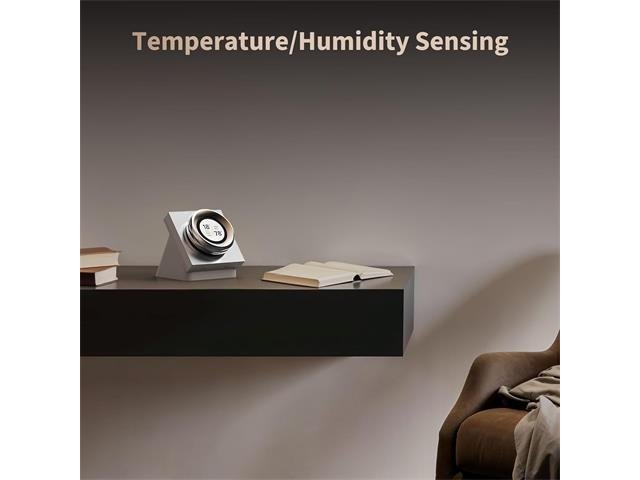

through its vibration and sound feedback. In addition, it has a variety of rich sensors that can
monitor indoor temperature and humidity, and set the proximity activation function according
to the actual size of the space to reduce light pollution. In addition, the switch seamlessly
integrates with third-party ecosystems via Wi-Fi to achieve a more versatile smart home setup.
Specifications
- Product Name : Touchscreen Dial V1 EU
- Model : DS-K01D

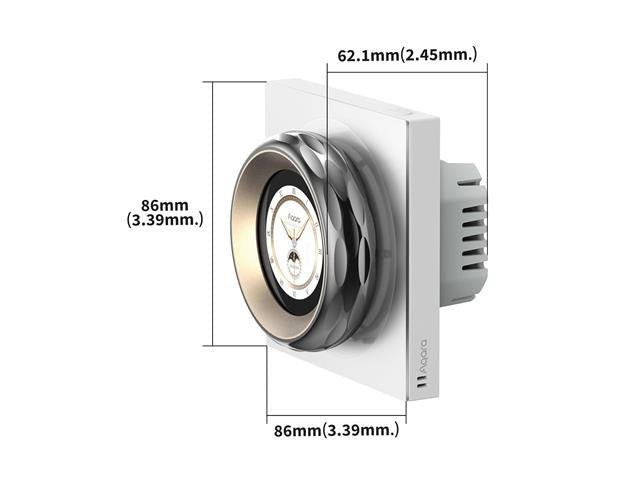

- Product Dimensions : 86 × 86 × 62.1 mm (3.39 × 3.39 × 2.45 in.)
- Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
- Operating Humidity : 0 ~ 95% RH, no condensation
- Electrical Rating : 200–240 VAC, 50/60 Hz, Max 8 A (Resistive Load), μ
- Wireless Protocols : Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee
IEEE802.15.4, Bluetooth
- What is in the Box : Touchscreen Dial V1 EU × 1, User Manual × 1, Compliance Statement × 1, Screw Kit × 2
Downloads
Additional Information
Device |
Touchscreen Dial |
Type |
V1 | EU |
