ARD ARDUINO INDUSTRIAL 101

SKU: ARD ARDUINO INDUSTRIAL 101

BRAND: Arduino

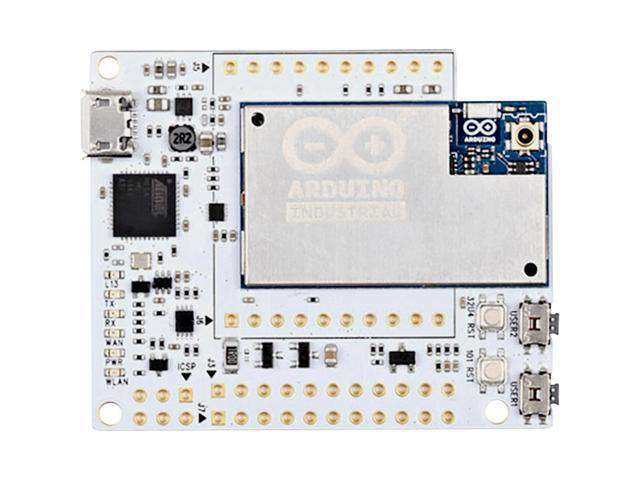

Arduino Industrial 101 Development Board

Overview

The Arduino 101 Industrial is a development board that evaluates the 101 Industrial Chiwawa LGA module. Similar to the Arduino Yun, the board features an on-board ATmega32u4 microcontroller, a Qualcomm Atheros AR9331 MIPS processor with Linino operating system and a IEEE 802.11b/g/n 1x1 2.4 GHz WiFi module. The Industrial 101 is another addition to the Arduino range of boards that enable you to develop Internet of Things (IoT) applications.

Features

Features & Benefits of the Industrial 101

  • 32 KB flash memory
  • 2.5 KB SRAM
  • 1 KB EEPROM
  • 16 MHz clock speed
  • Linino OpenWRT that includes Python 2.7
  • 64 MB DDR2
  • USB On The Go (OTG)
  • Power via microUSB connection
  • Built-in dog OLED pin header
  • ICSP connector
  • 32u4, WLAN & Chiwawa reset buttons
  • LEDs
  • Exported signals on header
  • 2 x PWM channels
  • 4 x Analogue input channels
  • 1 x Ethernet port
  • 3 x digital I/O pins
  • 5 V operating voltage
  • 5 V input voltage
