Overview

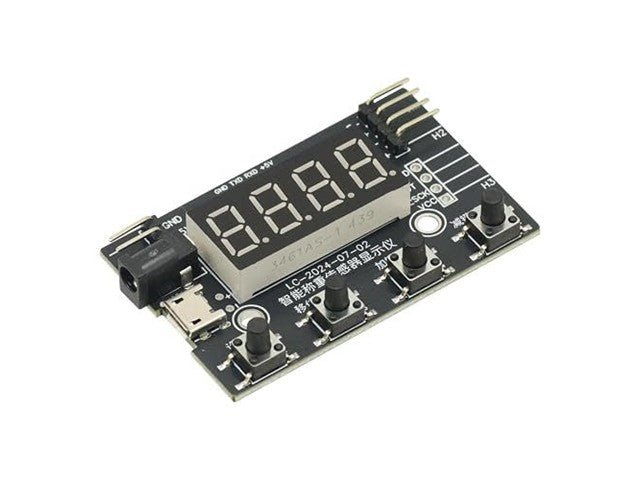

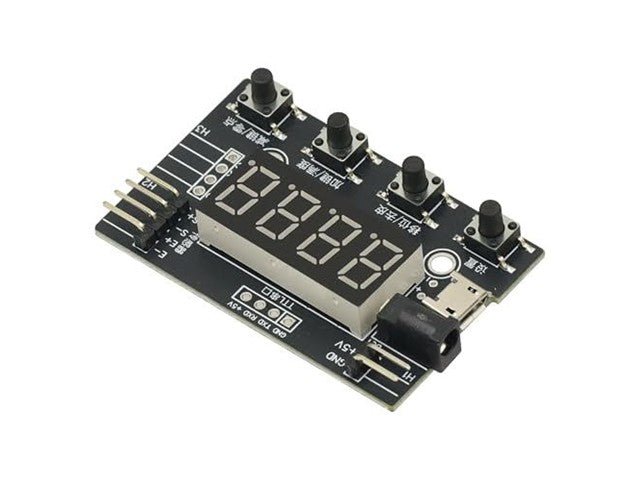

HX711 Weight Sensor Module Digital Load Cell Weight Pressure Sensor A/D Module with Display 24 Bit Weighing Meter Electronic Scale Smart Load Cell Display Meter for Arduino
Features
It has the functions of analog-to-digital conversion, digital calibration, Peeling, zero setting, anti-shake and so on.
Strong anti-interference ability, strong versatility, small temperature drift, high linearity
Characteristic parameters are stored non-volatilely, and the parameters are still saved after the power is turned off;
Display: 4 digital tubes (decimal point can be set, automatic displacement)
Keyboard: 4 keys
Power supply: 5VDC, all copper high-resistance socket 3.5-1.3, power cord power supply DC3.5mm
Size: 55×35×12 (L×W×D mm)
A/D module acquisition speed: 0-100 times/second optional (default 30)
Sensor quantity: 4 350Ω load cell
Specifications
- Load cell display instrument has the advantages of strong anti-interference ability, powerful function, easy operation, strong versatility, small temperature drift and high linearity, and is
- suitable for other measurement occasions such as weighing and mechanical strength testing.
- Small size, engineers can carry it with them, support Micro Android interface for power supply,

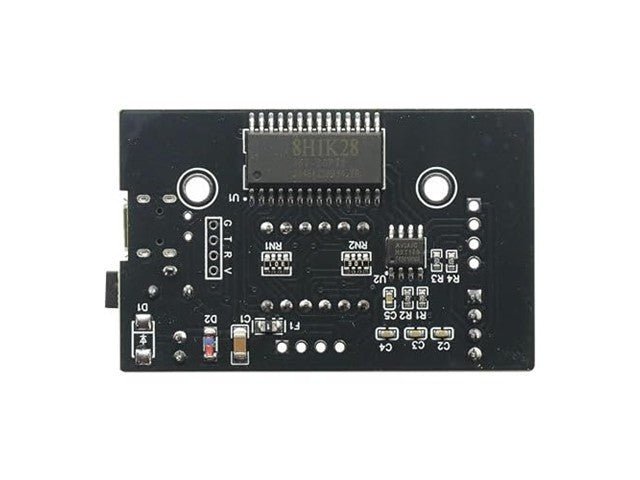

- Built-in HX711 chip for easy on-site debugging,
- Send data regularly, or when the weight changes
- Temperature coefficient: ≤100ppm/℃,
- A/D conversion rate: 6.25～100Hz
- Measurement signal range: ±19mV
- Comprehensive protection function: It has multiple protections such as anti-reverse connection, anti-overvoltage, instantaneous suppression, etc.
- Using temperature range: -40℃～+70℃;
- Storage temperature range: -60℃～+90℃
