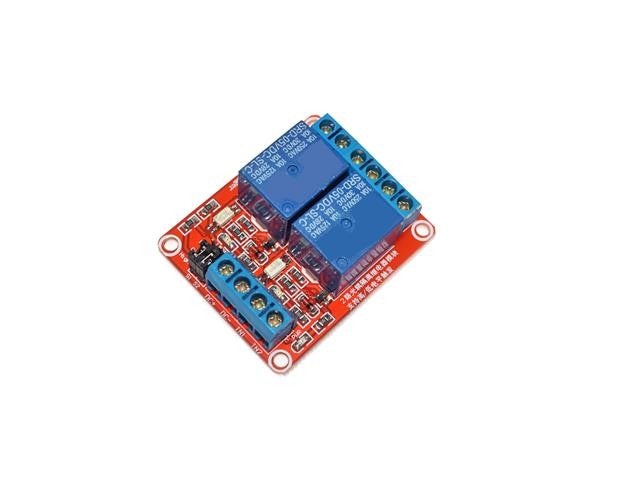

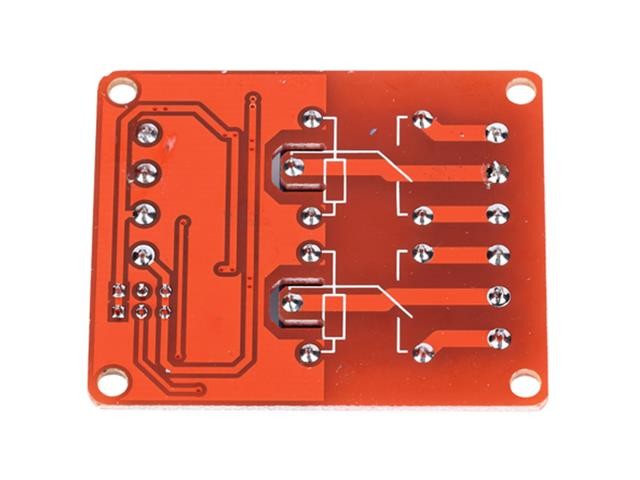

2 Channel Relay Module 12V, Maximum Load: AC 250V / 10A, DC 30V / 10A; The Module Supports High or Low Level Triggered Current, Set By Jumper.module Size: 50mm * 26mm * 18.5mm (L * W * H)
each channel module can be set high or low triggered by jumper
Fault-tolerant design, even if the control line is broken, the relay will not operate
Power indicator (green), 4 relay state indicator (red)
Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
Module size: 73 x 50 x 18.5mm (L x W x H)
Has 4 mounting bolts holes, hole 3.1mm, spacing 67mm x 44.5mm
Specifications

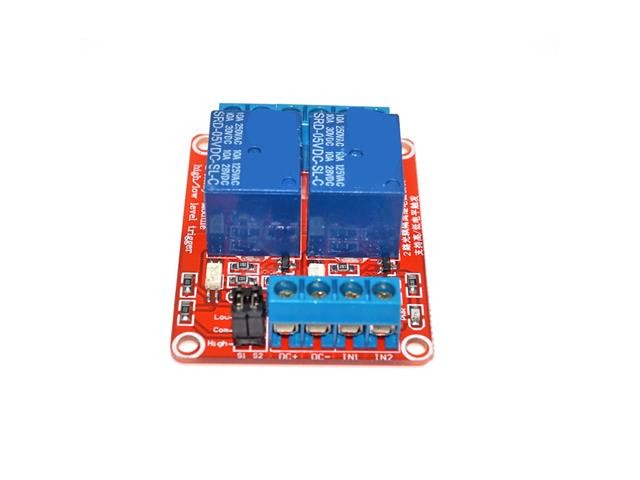

Interface :
DC +: positive power supply (12V)
DC-: negative power connection
IN1: 1 channel signal to trigger the end , you can set a high or low level control relay
IN2: 2 -channel signal to trigger the end , you can set a high or low level control relay

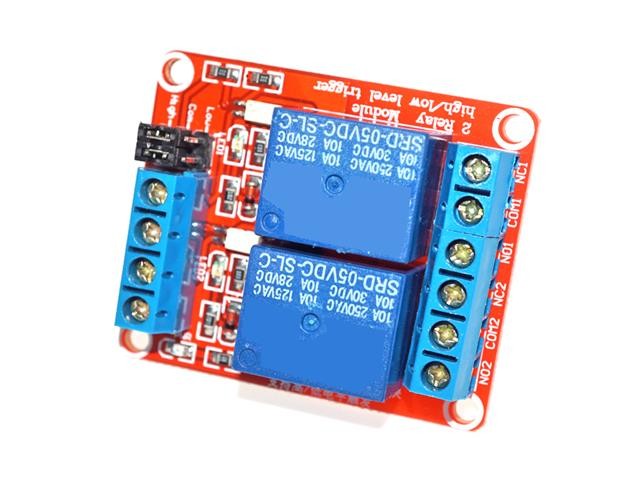

Outputs :
NO1: After a relay normally open interfaces , relay before floating, shorted pull with COM1
COM1: 1 relay common interface
NC1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant
NO2: 2 -way normally open relay interface, the relay before floating , pull back and COM2 short
COM2: 2 Common Interface relay
NC2: 2 -way normally closed relay interface relay short front and COM2 , pull vacant post
Additional Information
Device
Relay Module
Enhance your projects with the BDD Relay Board 2CH 12V, featuring robust AC and DC performance up to 10A. Its user-friendly design allows for high/low level triggering, ensuring reliable control. With fault-tolerant capabilities and clear indicator lights, it's perfect for both hobbyists and professionals seeking stable automation solutions.
