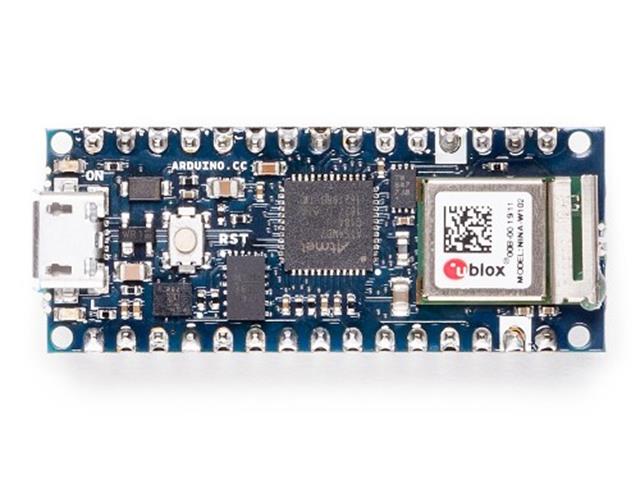

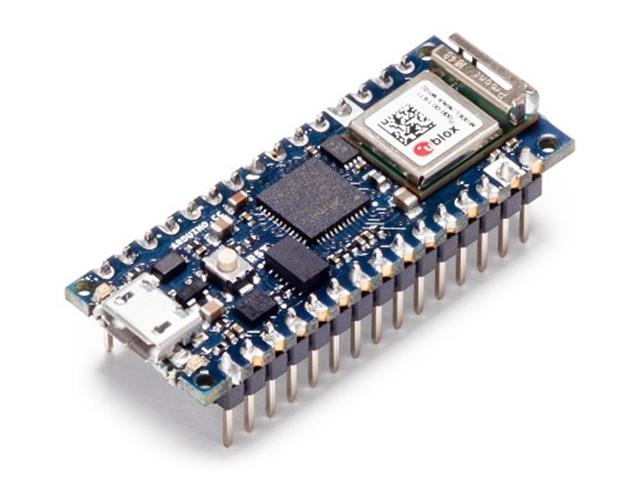

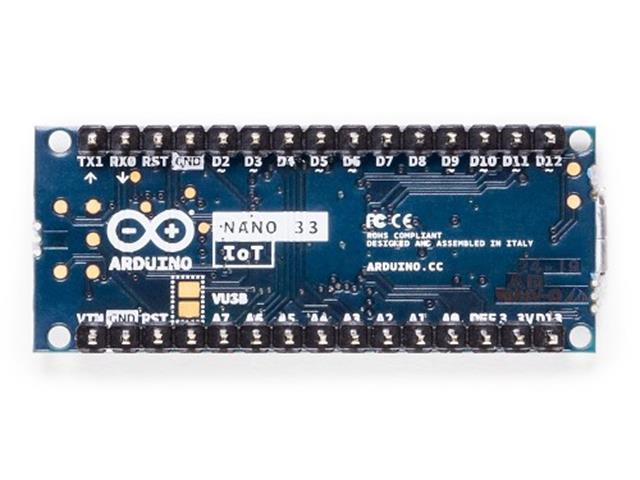

The Arduino Nano 33 IoT is the easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the Nano 33 IoT is your one-stop-solution for many of the basic IoT application scenarios.

 The board's main processor is a low power Arm® Cortex®-M0 32-bit SAMD21. The WiFi and Bluetooth® connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip® ECC608 crypto chip. Besides that, you can find a 6 axis IMU, what makes this board perfect for simple vibration alarm systems, pedometers, relative positioning of robots, etc.

• Microcontroller : SAMD21 Cortex®-M0+ 32bit low power ARM MCU
• Radio module : u-blox NINA-W102
• Secure Element : ATECC608A
• Operating Voltage : 3.3V
• Input Voltage (limit) : 21V
• DC Current per I/O Pin : 7 mA
• Clock Speed : 48MHz
• CPU Flash Memory : 256KB
• SRAM : 32KB
• EEPROM : none
• Digital Input / Output Pins : 14
• PWM Pins : 11 (2, 3, 5, 6, 9, 10, 11, 12, 16 / A2, 17 / A3, 19 / A5)
• UART : 1
• SPI : 1
• I2C : 1
• Analog Input Pins : 8 (ADC 8/10/12 bit)
• Analog Output Pins : 1 (DAC 10 bit)
• External Interrupts : All digital pins (all analog pins can also be used as interrupt pins, but will have duplicated interrupt numbers)
• LED_BUILTIN : 13
• USB : Native in the SAMD21 Processor
• IMU : LSM6DS3
• Length : 45 mm
• Width : 18 mm
• Weight : 5 gr (with headers)
