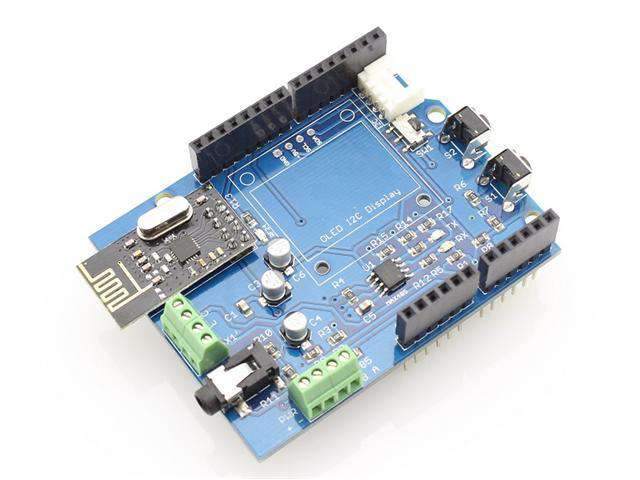

AZL ENERGY MONIT SHIELD FOR OLED

SKU: AZL ENERGY MONIT SHIELD FOR OLED

BRAND: Communica


Arduino-compatible Energy Monitor Shield V2 designed for building energy monitoring system with the ability to connect I2C OLED-display and built-in wireless transceiver nRF24L01 +

Overview

Energy Monitor Shield V2 is Arduino-compatible expansion card designed for building energy monitoring system with the ability to connect I2C OLED-display and built-in wireless transceiver nRF24L01 +. Unlike version 1, has on-board interface phototransistor to read data from the built-in LEDs of different counters and interface RS485.

Features

  • Connecting one sensors AC (30-100A)
  • Support I2C OLED-display
  • Terminal for connecting the phototransistor VTT7122H
  • Interface RS485
  • Two buttons to control (enabled one analog pin)
  • Transceiver for 2.4G nRF24L01 + soldered on the motherboard
  • GROVE-compatible connector: I2C
  • Fully compatible with Ethernet Shield (Wiznet 5200 + SD)
